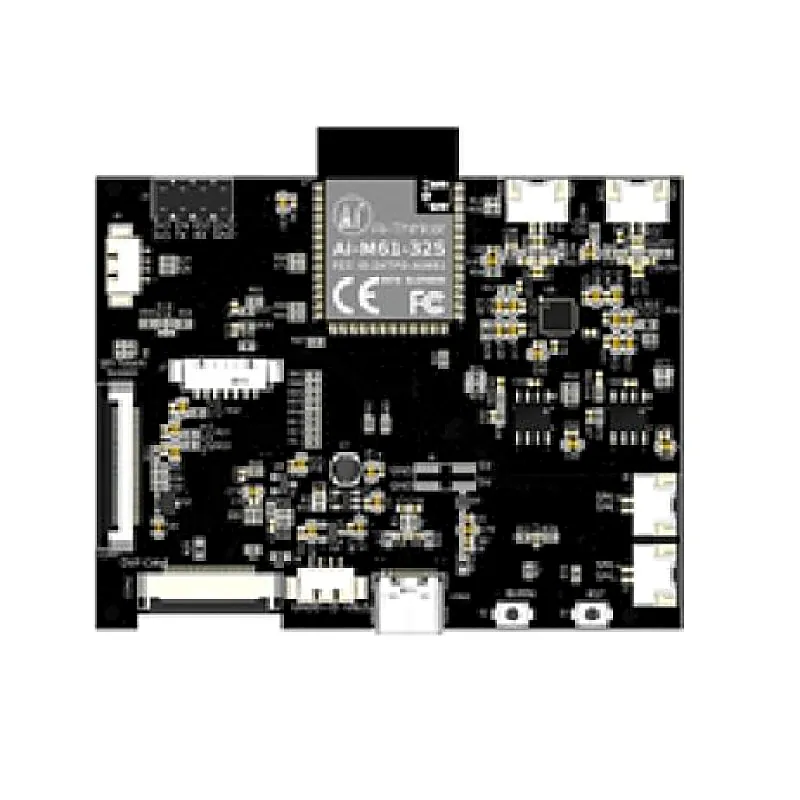

Ai-Thinker AiPi-Eyes-S1 Multi-Function Development Board

Ai-Thinker AiPi-Eyes-S1 Multi-Function Development Board specially designed for Ai-M61-32S by the Ai-Thinker open source team, supporting WiFi6 and BLE5.3. The Ai-M61-32S module equipped has rich peripheral interfaces, including DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc. Ai-Thinker AiPi-Eyes-S1 Multi-Function Development Board integrates the SPI screen interface, DVP camera interface, and reserved TF deck, and leads out the USB interface, which can be connected to the USB camera. Note: For more details please refer attachment. Features: WiFi 6, BLE 5.3, and Thread support Wi-Fi security support: WPS, WEP, WPA, WPA2, WPA3 STA, SoftAP, STA+SoftAP, and sniffer mode support Supports Wi-Fi Quick Connect with BLE General AT commands for easy use Dual-core 32-bit RISC-V CPU, max frequency of 320 MHz Integrated RF Balun, PA/LNA Supports XIP QSPI On-The-Fly AES Decryption (OTFAD) Encryption modes: AES-CBC/CCM/GCM/XTS, RSA/ECC, MD5, SHA-1/224/256/384/512 Package Includes: 1 x 3.5inch display 1 x Camera 2 x MIC 2 x Speaker Attachments : Download
