Ai Thinker AiPi-SCP-2.4

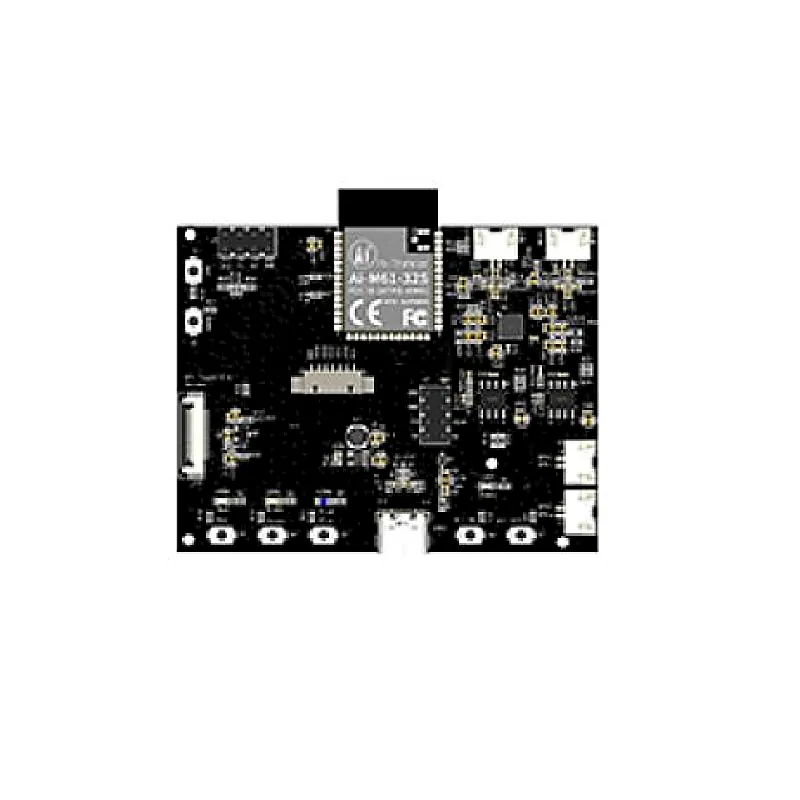

AiPi-SCP-2.4 uses Ai-Thinker Ai-M61-32S module as the control core, uses Type-C interface for power supply, connects to 2.4-inch RGB LCD display through SPI interface, and connects external audio circuit for voice broadcast and button group physical control. The Ai-M61-32S module equipped has rich peripheral interfaces, including DVP, MJPEG, Display, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc. Schematic diagram AiPi-SCP Schematic diagramClick to download Features : Powered by the Ai-Thinker Ai-M61 module, ensuring a robust and reliable control core for seamless functionality. Utilizes the Type-C interface for easy and convenient power supply. Features a 2.4-inch RGB LCD screen for vibrant and clear visual displays. Utilizes the SPI interface for efficient communication with the RGB LCD screen. External audio circuit for high-quality voice broadcast. Integrated button group for physical control, enhancing user interaction. USB2.0 for high-speed connectivity. SDU, Ethernet (EMAC), SD/MMC (SDH) for storage options. SPI, UART, I2C, I2S, PWM for versatile communication. Package Includes: 1 x Ai Thinker AiPi-SCP-2.4
