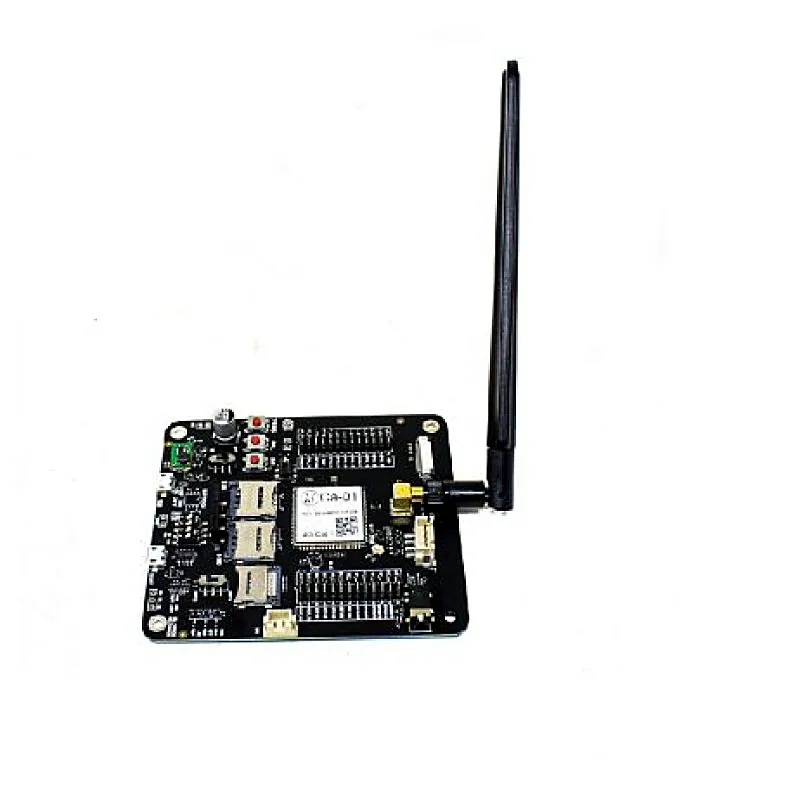

Ai-Thinker CA-01 Dev. Board

Ca-01 is an ultra-small package LTE Cat.1 bis module launched by Ai-Thinker. It adopts Unigroups UIS8910 platform and supports LTE 3GPP Rel.13 technology. It is a 4G full Netcom module that can adapt to different operators and products to ensure maximum flexibility in product design. Features: Support Cat.1 Support VoLTE Support 1.4 ~ 20MHz RF bandwidth LTE-TDD: uplink and downlink configuration 2 Maximum upstream rate 2Mbps, maximum downstream rate 8Mbps LTE-TDD: uplink and downlink configuration 1 Maximum upstream rate 4Mbps, maximum downstream rate 6Mbps Network protocol features Support: TCP/UDP/PPP/FTP/HTTP/NITZCMUXINDIS/NTP/ HTTPS/ In development: SMTP/SMTPS/MMS/DTMF USIM card interface Support USIM / SIM card: 1.8V and 3V USB interface Compatible with USB2.0 (only supports slave mode), the data transfer rate is up to 480Mbps Used for AT commands, data transmission, software debugging, software upgrade USB virtual serial port driver: support USB driver under Windows 7 / 8.1 / 10, Linux 2.6.x / 3.x / 4.1, Android 4.x / 5.x /6.x17.x and other operating systems Serial port Interface: 1 USB 2.0 high speed interface (up to 480Mbps) 1.8V/3.0V (U) SIM card interface 1 NETLIGHT interface (NET_STATUS and NET_MODE) 2 analog voice input 2 analog voice output 3 UART interfaces 1 SPI interface 1 SPI LCD interface 1 SPI Camera interface 1 MMC interface PWRKEY (active low) Support 6*6 array keyboard 2 ADC interfaces Electrical parameters-Output power: LTE-TDD: Class3(23dBm+1/-3dB); LTE-FDD: Class3(23dBm+-2dB); General features: 3GPP E-UTRA Release 13; Bandwidth: 1.4/3/5/10/15/20MHz; Package: stamp hole + LGA; Weight: about 2.6g; Package Includes: 1 x Ai-Thinker CA-01 Dev. Board
