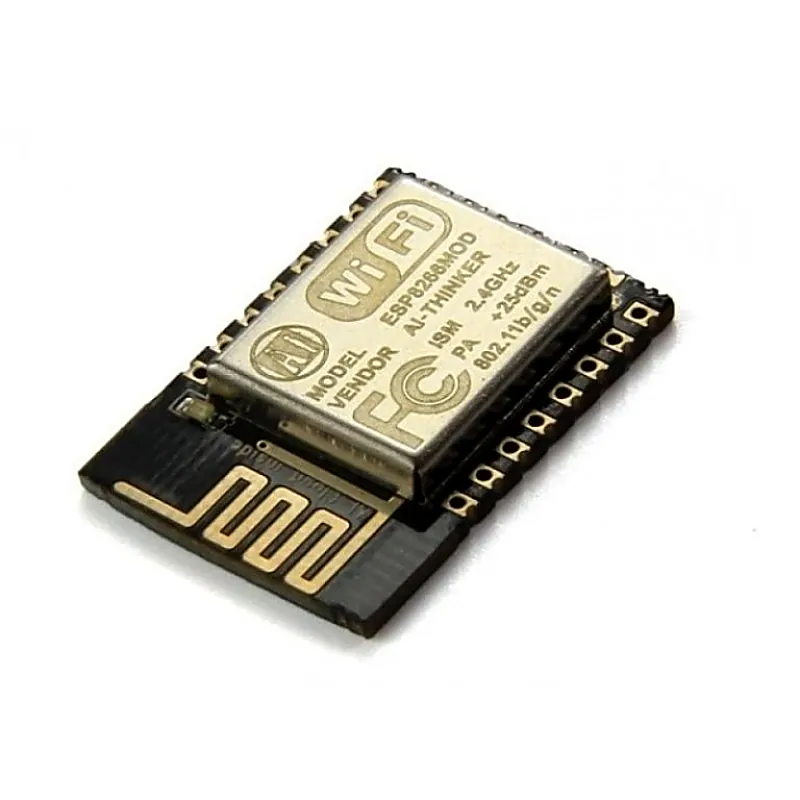

Ai Thinker ESP-12E ESP8266 Serial WiFi Module

Ai Thinker ESP-12E ESP8266 Serial WiFi Module is an ultra-low power consumption technology, designed especially for mobile devices and IoT applications, users physical device can be connected to a Wifi wireless network, internet or intranet communication, and networking capabilities. The Core processor ESP8266 in smaller sizes of the module encapsulates Tensilica L106 integrates industry-leading ultra low power 32-bit MCU micro, with the 16-bit short mode, Clock speed support 80 MHz, 160 MHz, supports the RTOS, integrated Wi-Fi MAC/BB/RF/PA/LNA, on-board antenna. The module supports standard IEEE802.11 b/g/n agreement, complete TCP/IP protocol stack. Users can use the add modules to an existing device networking or building a separate network controller. ESP8266 is a high integration wireless SOCs, designed for space and power-constrained mobile platform designers. It provides an unsurpassed ability to embed Wi-Fi capabilities within other systems or to function as a standalone application, with the lowest cost, and minimal space requirement. Features: 802.11 b/g/n Integrated low power 32-bit MCU Integrated 10-bit ADC Integrated TCP/IP protocol stack Integrated TR switch, balun, LNA, power amplifier and matching network Integrated PLL, regulators, and power management units Supports antenna diversity Wi-Fi 2.4 GHz, support WPA/WPA2 Support STA/AP/STA+AP operation modes Support Smart Link Function for both Android and iOS devices Support Smart Link Function for both Android and iOS devices SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIO STBC, 11 MIMO, 21 MIMO A-MPDU & A-MSDU aggregation and 0.4s guard interval Deep sleep power <10uA, Power-down leakage current < 5uA Wake up and transmit packets in < 2ms Standby power consumption of < 1.0mW (DTIM3) +20dBm output power in 802.11b mode Operating temperature range -40C ~ 125C Package includes: 1 x Ai Thinker ESP-12E ESP8266 Serial WiFi Module Additional information Module Model ESP-12E WIFI 802.11 b/g/n Input Supply Range (VDC) 3.0 ~ 3.6 Receiving Sensitivity 54Mbps(3/4 64-QAM):-75dBm 6Mbps(1/2BPSK):-93dBm CCK,11Mbps -91dBm DSSS 1Mbps:-98dBm Operating Temperature (C) -40 ~ +125 Security WPA/WPA2 Operating Voltage 3.0-3.6V External Interface N/A Operating Current 80mA Frequency Range 2.4GHz-2.5GHz Length (mm) 16 Width (mm) 24 Height (mm) 3
