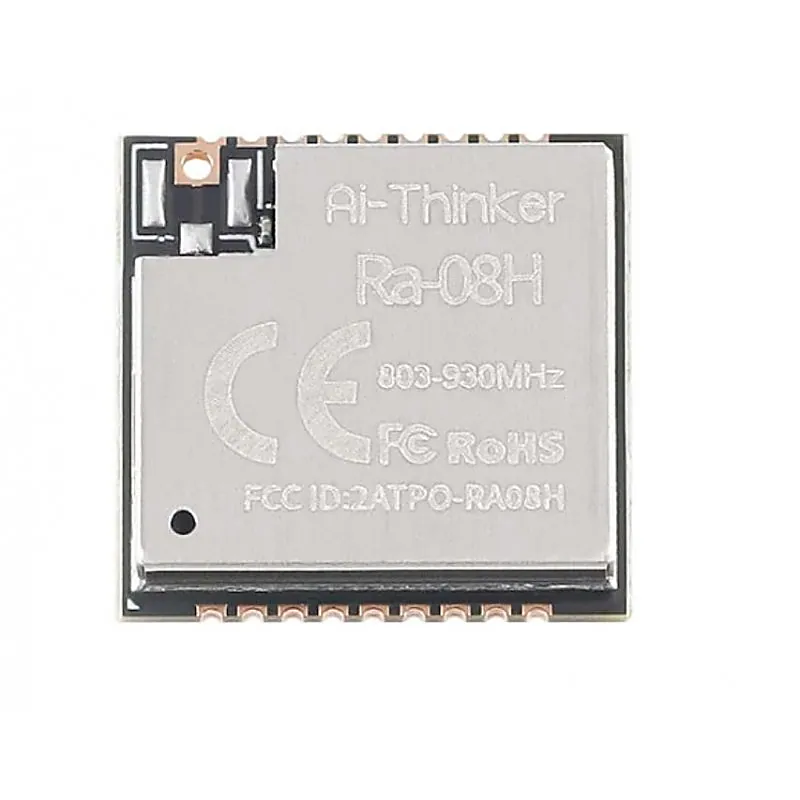

Ai Thinker LoRa Series Ra-08H Spread Spectrum Wireless Module

The module is used for ultra-long distance spread spectrum communications. Its chip ASR6601 is a universal LPWAN wireless communication SOC, integrated with RF transceivers, modems, and a 32-bit RISC MCU. The MCU adopts an ARM core with a working frequency of 48MHz. The Ra-08 module supports LoRa modulation and traditional (G)FSK modulation under the LPWAN. At the same time, the transmitter also supports BPSK modulation and (G) MSK modulation, receiver support (G) MSK modulation. The Ra-08 module provides long-range and ultra-low power communications for LPWAN applications, which can be widely used in smart meters, supply chain and logistics, home building automation, security system, remote irrigation system and other scenes. Features:- Adopt SMD-18 package Support frequency: 803MHz ~930MHz Working voltage is 3.3V, theoretical maximum transmit power: +22dBm High sensitivity: -138dBm @125Kz SF12 Support spread spectrum factor: SF5/SF6/SF7/SF8/SF9/SF10/SF11/SF12 Embedded memory, 128KB FLASH,16KB SRAM Support LoRa/(G)FSK/BPSK/(G)MSK modulation Antenna interface is compatible with stamp holes / circular holes and IPEX, etc., support more option selection Support multiple sleep modes: depth sleep current is low to 0.9uA Specifications:- Module : Ra-08H Package : SMD-18 Size : 16x16x3.2(+0.2)mm Antenna : half-hole pad / through-hole pad / IPEX Spectrum range : 803-930MHz Working temperature : -40 ℃ ~ 85 ℃ Storage temperature : -40 ℃ ~ 125 ℃, < 90%RH Power supply : Voltage 2.7V ~ 3.6V, Current >500mA Interface : UART/GPIO/ADC/DAC/I2C/I2S/SPI/PWM IO : IO2,IO4,IO5,IO8,IO9,IO11,IO14,IO15 UART rate : Support 110 ~ 4608000 bps, Default 115200 bps Crystal frequency : 32MHz SPI Flash : 128KB Transfer Protocol : LoRaWAN, LinkWAN Package Includes:- 1 x Ai Thinker LoRa Series Ra-08H Spread Spectrum Wireless Module
