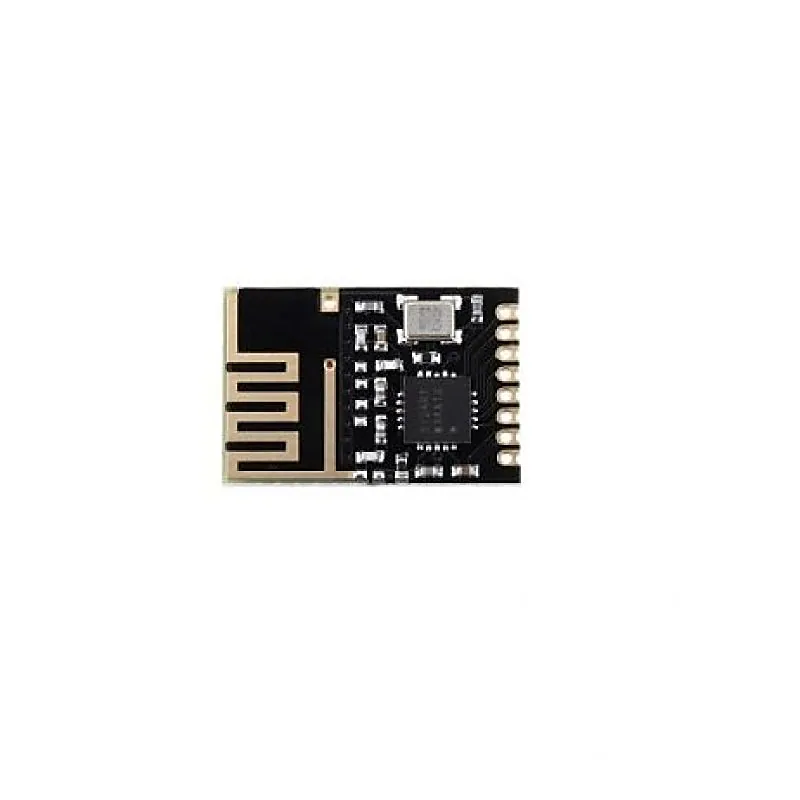

Ai Thinker NF-03 Wireless Transceiver Module

Ai Thinker NF-03 Wireless Transceiver is a 2.4G wireless module with a small size and on-board antenna. It has a high airspeed (up to 2Mbps), an SPI interface, and a pure hardware module. It has high stability, high-cost performance, and good spectrum test characteristics. , small size, using all industrial-grade components. NF-03 can be widely used in various Internet of Things applications and is suitable for wireless mouse and keyboard, wireless remote control, somatosensory equipment, active RFID, NFC, low-power self-organizing network wireless sensor network nodes. The ideal solution for IoT applications Features: 1. Built-in 2.4G antenna, compact size, easy to use 2. Support data reception of six channels 3. Modulation method: GFSK / FSK 4. Support 2Mbps/1Mbps/250Kbps data rate 5.Internally integrated high PSRR LDO 6. Wide power supply voltage range: 1.9~3.6V 7. Average emission current as low as 110mA 8.Receiving sensitivity: 9. Maximum transmit power: +7dBm 10. With four-wire SPI interface, the speed can up to 10MHz 11. Internal integrated intelligent ARQ baseband protocol engine 12. Transceiver data hardware interrupt output 13. Support 1bit RSSI output 14.Receiving sensitivity: Package includes: 1 x Ai Thinker NF-03 Wireless Transceiver Module
