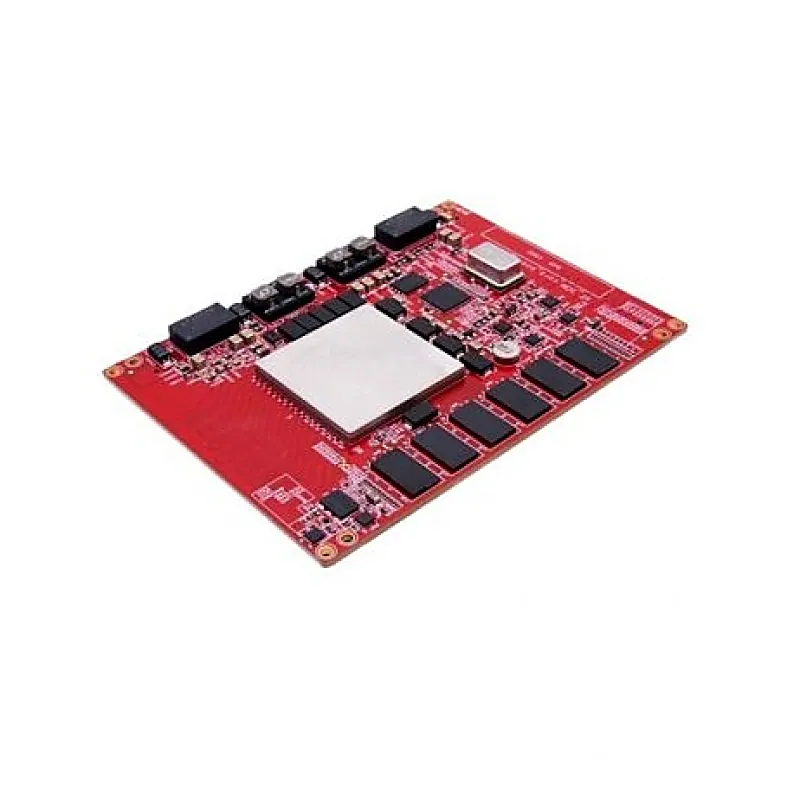

Alinx ACRF47 SoM Based on AMD Zynq US+ RFSoC XCZU47DR

The Alinx ACRF47 SoM based on AMD Zynq US+ RFSoC XCZU47DR combines high-end AMD/Xilinx Zynq UltraScale+ RFSoC-series XCZU47DR device with fast DDR4 SDRAM,dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. Integrate hardware and software to help you provide a prototype of a high-performance wireless receiver system and perform air signal acquisition and analysis The Alinx ACRF47 SoM based on AMD Zynq US+ RFSoC XCZU47DR is a powerful system-on-chip featuring a quad-core ARM Cortex-A53 (1.333 GHz), 16nm FinFET+ FPGA, and advanced RF capabilities with 8 x 14-bit ADCs (up to 5 GSPS) and DACs (up to 9.85 GSPS). It includes 4 GB DDR4 for the processing system, 2 GB DDR4 for programmable logic, and 128 MB QSPI Flash. With high-speed connectivity (8 GTY transceivers at 28.21 Gbps, 4 PS-GTR at 6 Gbps), it operates in -40C to +85C, powered by a single 5V supply, and fits a compact 115 x 85 mm form factor with dual Samtec connectors. Features: Processing Power: ARM quad-core Cortex-A53 processor up to 1.333 GHz. Advanced FPGA Fabric: 16nm FinFET+ FPGA for efficient signal processing and logic implementation. High-Performance Core: Integrates AMD Zynq UltraScale+ RFSoC-series XCZU47DR. Advanced Memory: Equipped with fast DDR4 SDRAM and QSPI Flash for efficient data handling. Purpose-Built: Optimized for Single-Chip Adaptable Radio Platform development and high-performance RF tasks. Applications : 5G FR1/FR2 RF and baseband phased array system Radar system Software radio Spectrum monitoring Medical system Package Includes: 1x Alinx ACRF47 SoM based on AMD Zynq US+ RFSoC XCZU47DR
