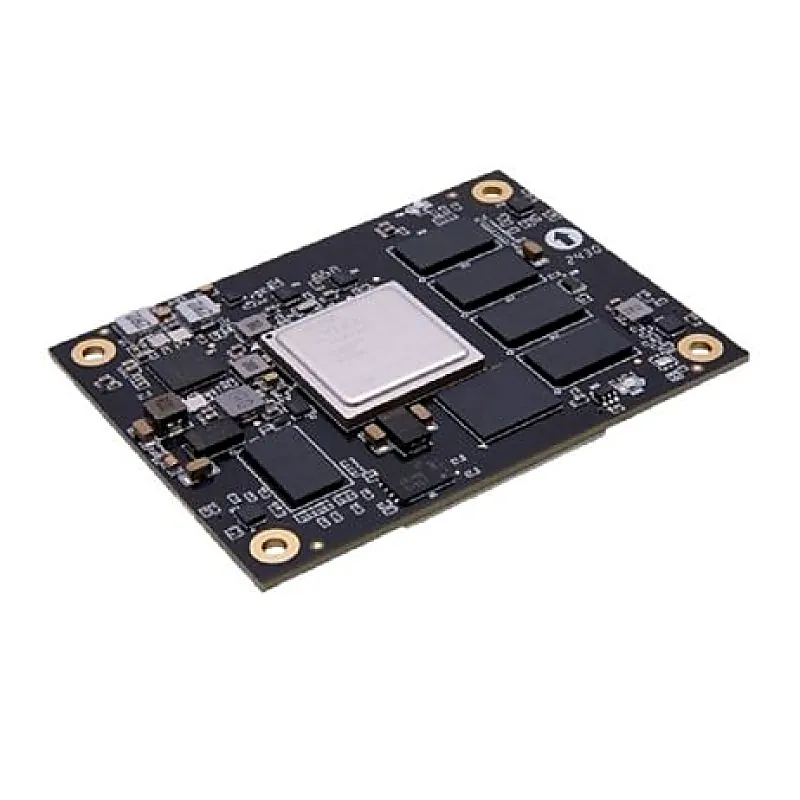

Alinx ACU5EV SoM Based on AMD Zynq US+ MPSoC XCZU5EV
Alinx ACU5EV SoM Based on AMD Zynq US+ MPSoC XCZU5EV
The Alinx ACU5EV SoM combines high-end AMD/Xilinx Zynq UltraScale+ MPSoC-series device with fast DDR4 SDRAM, eMMC Flash, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.. Features: Processor: AMD/Xilinx Zynq UltraScale+ MPSoC-series Memory: DDR4 SDRAM for hi
+ 18% GST (added at checkout)
In stock — 1 units ready
- Processor: AMD/Xilinx Zynq UltraScale+ MPSoC-series
- Memory: DDR4 SDRAM for high-speed performance
- Storage: eMMC Flash and QSPI Flash
- Interfaces: DisplayPort (DP) and PCIe support
- Applications: Designed for AI, computing, automotive, industrial, video, and communication systems.
- ARM Cores: Quad-core Cortex-A53 up to 1.3 GHz and dual-core Cortex-R5 up to 533 MHz.
- GPU: Mali-400MP2 for enhanced graphics processing.
- Video Codec: Supports H.264/H.265 (for EV devices).
- Advanced FPGA Fabric: Built with 16nm FinFET+ technology for high-speed processing.
- Gigabit Transceivers: 4 x PS-GTR (up to 6 Gbps) and 4 x PL GTH (up to 12.5 Gbps for ZU4/5).
- Artificial Intelligence
- Automotive
- AV Broadcasting
- Deep learning
- Digital Signal Processing
- 5G Wireless and Wire Communication
- Data Centers
- Drive / Motion Contr
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The Alinx ACU5EV SoM combines high-end AMD/Xilinx Zynq UltraScale+ MPSoC-series device with fast DDR4 SDRAM, eMMC Flash, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.. Features: Processor: AMD/Xilinx Zynq UltraScale+ MPSoC-series Memory: DDR4 SDRAM for high-speed performance Storage: eMMC Flash and QSPI Flash Interfaces: DisplayPort (DP) and PCIe support Applications: Designed for AI, computing, automotive, industrial, video, and communication systems. ARM Cores: Quad-core Cortex-A53 up to 1.3 GHz and dual-core Cortex-R5 up to 533 MHz. GPU: Mali-400MP2 for enhanced graphics processing. Video Codec: Supports H.264/H.265 (for EV devices). Advanced FPGA Fabric: Built with 16nm FinFET+ technology for high-speed processing. Gigabit Transceivers: 4 x PS-GTR (up to 6 Gbps) and 4 x PL GTH (up to 12.5 Gbps for ZU4/5). Applications : Artificial Intelligence Automotive AV Broadcasting Deep learning Digital Signal Processing 5G Wireless and Wire Communication Data Centers Drive / Motion Contr Package Includes: 1 x Alinx ACU5EV SoM based on AMD Zynq US+ MPSoC XCZU5EV
