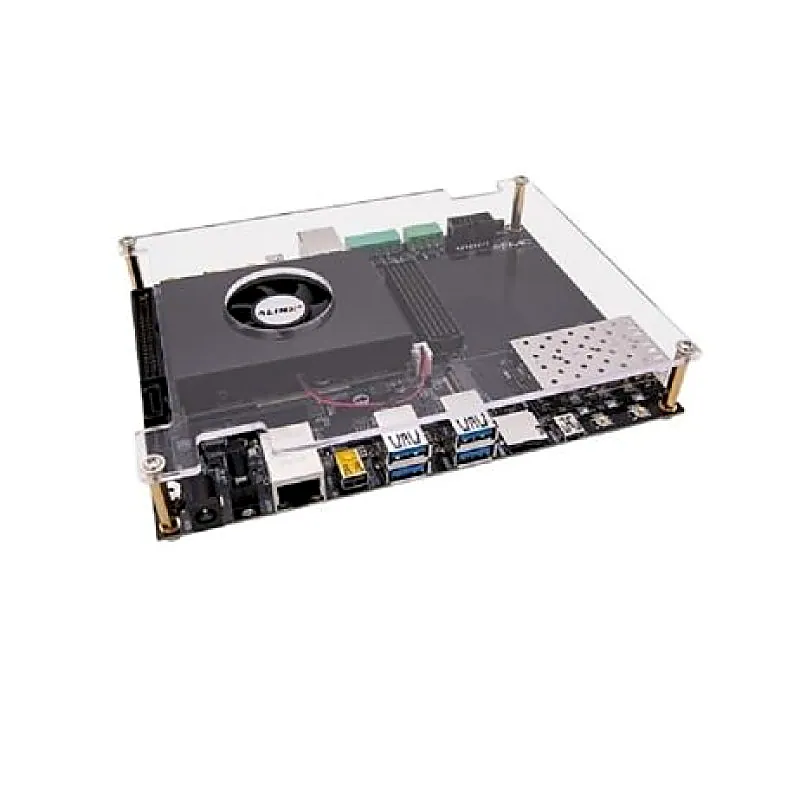

Alinx AXU15EGB Dev Board & Kit with AMD Zynq US+ MPSoC ZU15EG
Alinx AXU15EGB Dev Board & Kit with AMD Zynq US+ MPSoC ZU15EG
The Alinx AXU15EGB Dev Board equipped with the AMD/Xilinx Zynq UltraScale+ MPSoC-series device, delivers standout performance with fast DDR4 SDRAM, eMMC Flash, QSPI Flash, FMC HPC, DP, M.2. Alinx AXU15EGB Dev Board is compatible with a multitude of FMC board (data acquisition, motor control, display
+ 18% GST (added at checkout)
In stock — 1 units ready
- High-Performance SoC: Powered by AMD/Xilinx Zynq UltraScale+ MPSoC XCZU15EG-2FFVB1156I.
- Quick Start: Design-in kit enables immediate development out of the box.
- Time-to-Market Advantage: Streamlines development for Zynq UltraScale+ MPSoC-based applications.
- High-Performance SoC: AMD/Xilinx Zynq UltraScale+ MPSoC with ARM Cortex-A53, Cortex-R5, and Mali-400MP2 GPU.
- Advanced FPGA Fabric: Built on 16nm FinFET+ for efficient processing.
- Expandable: Pluggable module with 4 x Panasonic board-to-board connectors.
- Generous Memory: 4 GB DDR4 SDRAM on PS, 2 GB DDR4 SDRAM on PL.
- Storage Options: 64 MB QSPI Flash and 8 GB eMMC Flash for fast data access.
- Artificial Intelligence
- Automotive
- AV Broadcasting
- Deep learning
- Digital Signal Processing
- 5G Wireless and Wire Communication
- Data Centers
- Drive / Motion Control
- Industrial Internet of Thing
- Cloud Computing Security
- Machine Vision
- Medical Endoscop
- Video and Image Processing
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The Alinx AXU15EGB Dev Board equipped with the AMD/Xilinx Zynq UltraScale+ MPSoC-series device, delivers standout performance with fast DDR4 SDRAM, eMMC Flash, QSPI Flash, FMC HPC, DP, M.2. Alinx AXU15EGB Dev Board is compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (SFP+), high-speed storage (M.2) and video applications (DP). The ALINX development board offers a high-speed FMC HPC connector, 2 SFP+ slots (12.5Gbps), Gigabit Ethernet, UARTs, M.2, DP interface, 2-lane MIPI, USB ports, CAN, RS485, and a 40-pin expansion port. It also includes EEPROM, temperature sensor, Micro SD, RTC, LEDs, and user-defined keys. Powered by a 12V supply, it comes in a 180 x 135 mm form factor, ideal for versatile embedded applications. Features: High-Performance SoC: Powered by AMD/Xilinx Zynq UltraScale+ MPSoC XCZU15EG-2FFVB1156I. Quick Start: Design-in kit enables immediate development out of the box. Time-to-Market Advantage: Streamlines development for Zynq UltraScale+ MPSoC-based applications. High-Performance SoC: AMD/Xilinx Zynq UltraScale+ MPSoC with ARM Cortex-A53, Cortex-R5, and Mali-400MP2 GPU. Advanced FPGA Fabric: Built on 16nm FinFET+ for efficient processing. Expandable: Pluggable module with 4 x Panasonic board-to-board connectors. Generous Memory: 4 GB DDR4 SDRAM on PS, 2 GB DDR4 SDRAM on PL. Storage Options: 64 MB QSPI Flash and 8 GB eMMC Flash for fast data access. Applications : Artificial Intelligence Automotive AV Broadcasting Deep learning Digital Signal Processing 5G Wireless and Wire Communication Data Centers Drive / Motion Control Industrial Internet of Thing Cloud Computing Security Machine Vision Medical Endoscop Video and Image Processing Package Includes: 1 x System-on-Module 1 x Base Board 1 x Heatsink Kit (preinstalled) 1 x USB Downloader Cable / set 1 x 12V Power Adapter 1 x Acrylic board 1 x Mini USB Cable 1 x Card Reader 1 x TF Card 1
