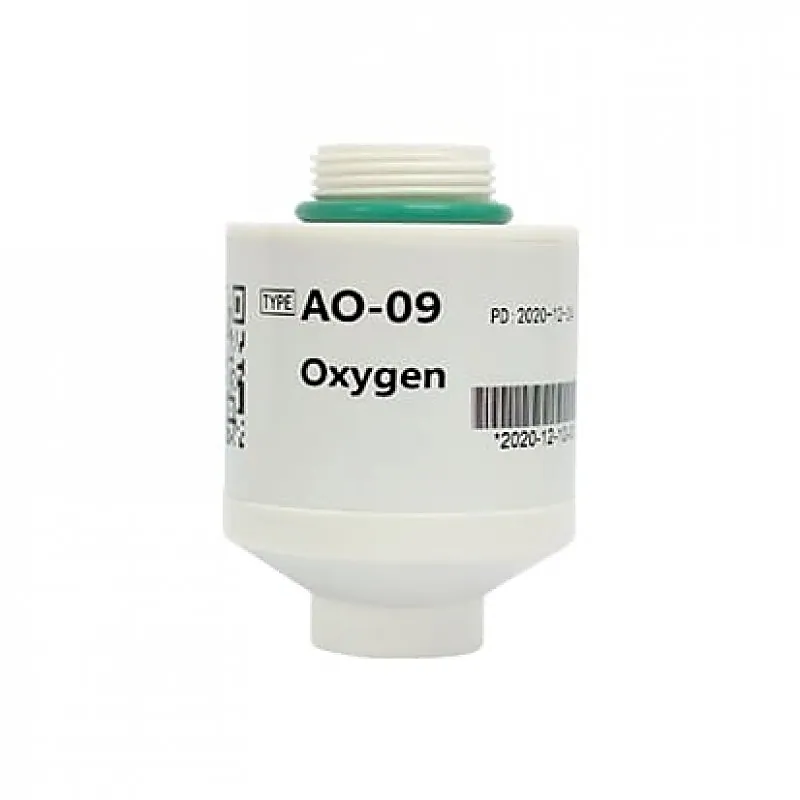

AO-09 Oxygen sensor

AO-09 is the oxygen sensor of Aosong Electronics. Offering long life and fast response, the high-quality AO-09 replacement sensor incorporates a molded body design, specific for medical use. Best of all, the AO-09 costs less than the sensors it replaces, creating additional saving while providing superior quality. Applications: AO-09 Medical Oxygen Sensors are intended as an oxygen-sensing component of an oxygen analyzer that measures oxygen concentration in breathing gas mixtures in the following applications: Sensing device for oxygen The control device of oxygen concentrators Medical ventilators Anesthesia equipment Incubators Features: Meets ISO 80601-2-55 Linear output from 0% to 100% No external power supply Temperature compensation Excellent signal stability Accurate and reliable Fast response Anti-interference Long-lasting ELECTRICAL: Temperature Compensation 2% O2 equivalent0-40 External Load Resistor 10 k Connector 3P2.5 MECHANICAL Housing Material White ABS Weight 36 g (nominal) Orientation Any Influence of Mechanical Shock < 1 % relative after a fall from 1 m ENVIRONMENTAL: Typical Applications: Critical care anesthesia Operating Temperature Range: 0 ~ +50 Operating Pressure Range: 0.5 Bar 2.0 Bar Operating Humidity Range: 0% to 99% RH noncondensing Packages Includes: 1 x AO-09 Oxygen sensor
