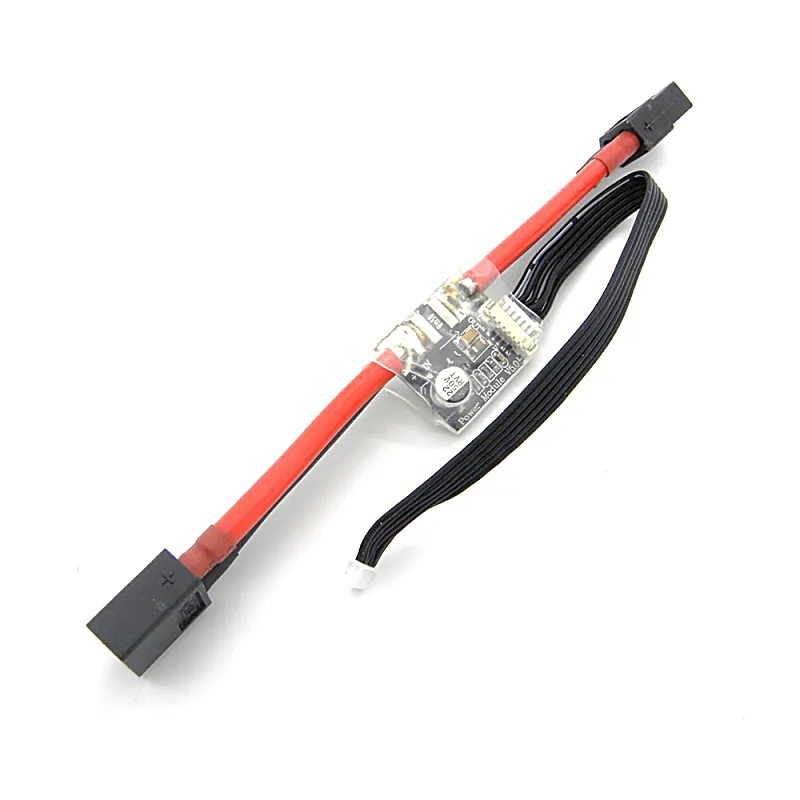

APM/Pixhawk Power Module V6.0 Output BEC 3A XT60 Plug 28V 90A
APM/Pixhawk Power Module V6.0 Output BEC 3A XT60 Plug 28V 90A
The APM 2.5.2/2.6/2.8 Pixhawk Power Module is a simple way of providing your APM with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from 2S-6S LiPo batte
+ 18% GST (added at checkout)
In stock — 61 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The APM 2.5.2/2.6/2.8 Pixhawk Power Module is a simple way of providing your APM with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from 2S-6S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection. Note: The Power Module is only designed to power APM, an RC receiver and APM accessories (GPS, 3DR radio). It is not designed to power the servos. Use your aircrafts own ESC/BEC for that. Features: Voltage and current measurement configured for 5V ADC. Switching regulator outputs 5.3V and 3A max. 6-pos DF13 cable plugs directly to APM 2.5s PM connector. Supports from 2 cell to 6 cell battery. Package Includes : 1 x APM/Pixhawk Power Module V6.0 Output BEC 3A XT60 Plug 28V 90A
