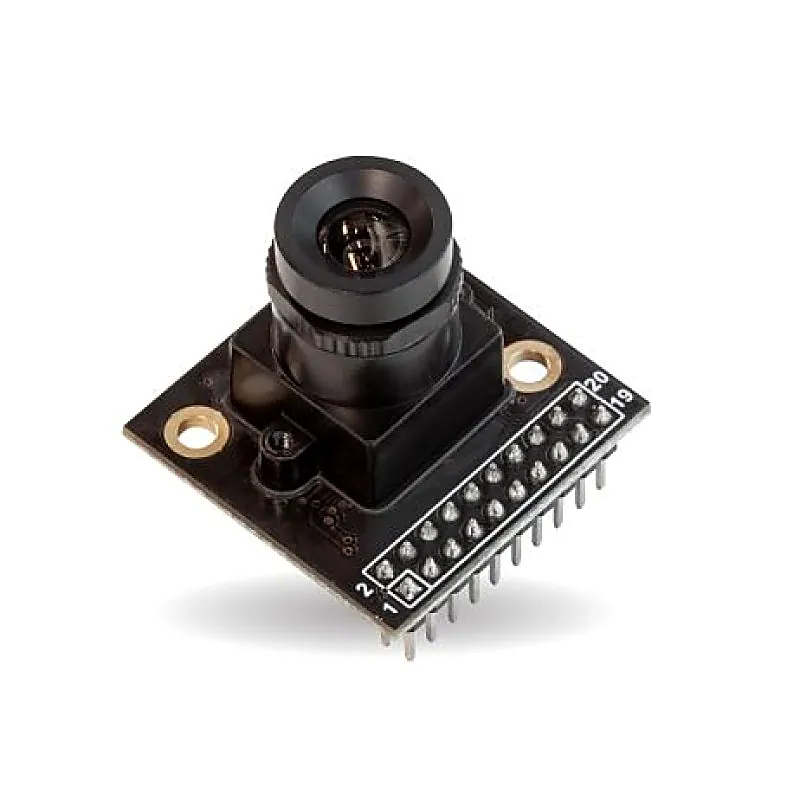

Arducam 1/4 3 Mega pixel M12 Mount OV3640 Camera Module with JPEG Output

The Arducam 1/4 3 Mega Pixel M12 Mount OV3640 Camera Module is a high-performance imaging solution designed for compact and versatile applications. Featuring the OV3640 CMOS sensor, this module captures images at a resolution of 3 megapixels (20481536), providing clear and detailed visuals suitable for a range of projects.One of its standout features is its ability to output JPEG-compressed images. This format significantly reduces file size, making it easier to store and transmit image data while maintaining acceptable quality. The M12 lens mount adds a layer of versatility by allowing users to swap out lenses based on their specific needs, such as choosing between wide-angle or zoom lenses to suit different fields of view or focal lengths. Features: Onboard LDO regulators for 2.8V and 1.8V Single 3.3V power input 2.54mm (0.1 inch) standard pin out active array size: 2048 x 1536 power supply: core: 1.5VDC + 5% (internal regulator) analog: 2.6 ~ 3.0V I/O: 1.7 ~ 3.0V output formats : (8-bit): YUV(422/420) / YCbCr422, RGB565/555/444, CCIR656, 8-bit compression data, 8/10-bit raw RGB data lens size: 1/4 input clock frequency: 6 ~ 27 MHz shutter: rolling shutter maximum image transfer rate: 3 megapixel (20481536): 15 fps (and any size scaling down from3 megapixel) XGA(1024768): 30 fps scan mode: progressive pixel size: 1.75 m x 1.75 m image area: 3626 m x 2709 m Interface: Parallel RAW,RGB,YUV,JPEG output External 1/4 inch high quality M12x0.5 lens Package Include: 1 x Arducam 1/4 3 Mega pixel M12 Mount OV3640 Camera Module with JPEG Output
