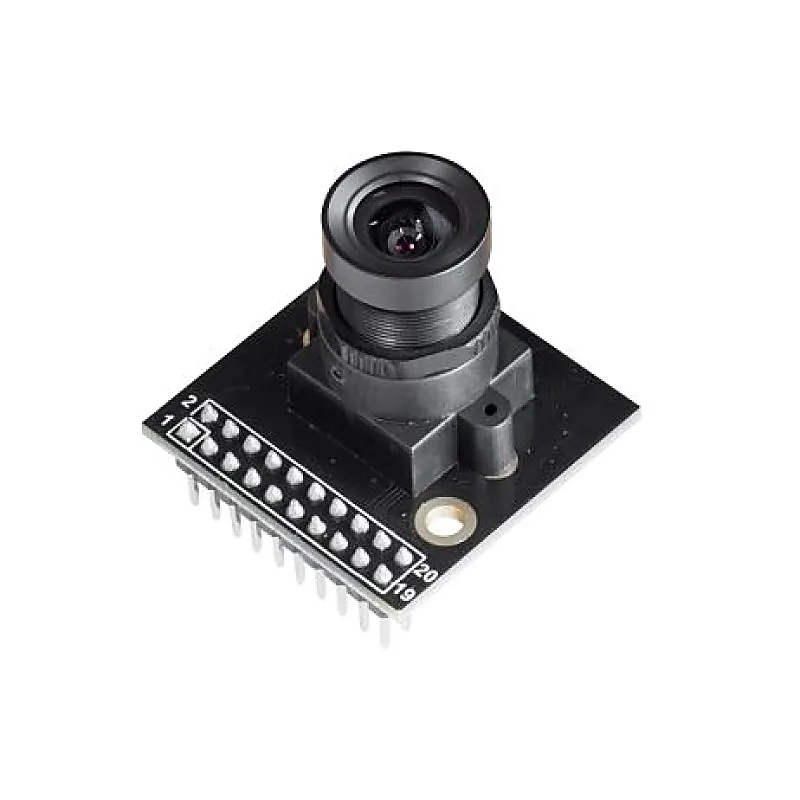

Arducam 5 Mega pixel Camera Module OV5642 1080P JPEG Output

Introduction Arducam OV5642 camera breakout incorporates Omnivision 1/4inch CMOS activepixel digital imaging sensor OV5642 with an active pixel array of 25921944. The entire system-on-a-chip (SOC) has onchip AEC/AGC/AWB etc ISP functions, and supports RAW/YUV/RGB/JPEG different output format. Key Specification Optical format 1/4inch (4:3) Full Resolution 2592 x 1944 Pixel size 1.4 x 1.4m Color filter Applications: image acquisition Enviornment monitor Inductrial cameramachine vision flow detection medical endoscope video telephone safety guard alarm system door bell camera and video door bell vehicle monitoring romote monitor and control digital image record 3D scanner printer intelligent toys Features: Onboard LDO regulators for 2.8V and 1.8V Single 3.3V power input 2.54mm (0.1 inch) standard pin out active array size: 2592 x 1944 power supply: core: 1.5VDC + 5% (internal regulator) analog: 2.6 ~ 3.0V I/O: 1.7 ~ 3.0V output formats : (8-bit): YUV(422/420) / YCbCr422, RGB565/555/444, CCIR656, 8-bit compression data, 8/10-bit raw RGB data lens size: 1/4 input clock frequency: 6 ~ 27 MHz shutter: rolling shutter maximum image transfer rate: 5 megapixel (25921944): 15 fps (and any size scaling down from 5 megapixel) scan mode: progressive image area: 3673.6 m x 2738.4 m RAW,RGB,YUV,JPEG output support External 1/4 inch high quality M12x0.5 lens Package Includes: 1 x Arducam 5 Mega pixel Camera Module OV5642 1080P JPEG Output
