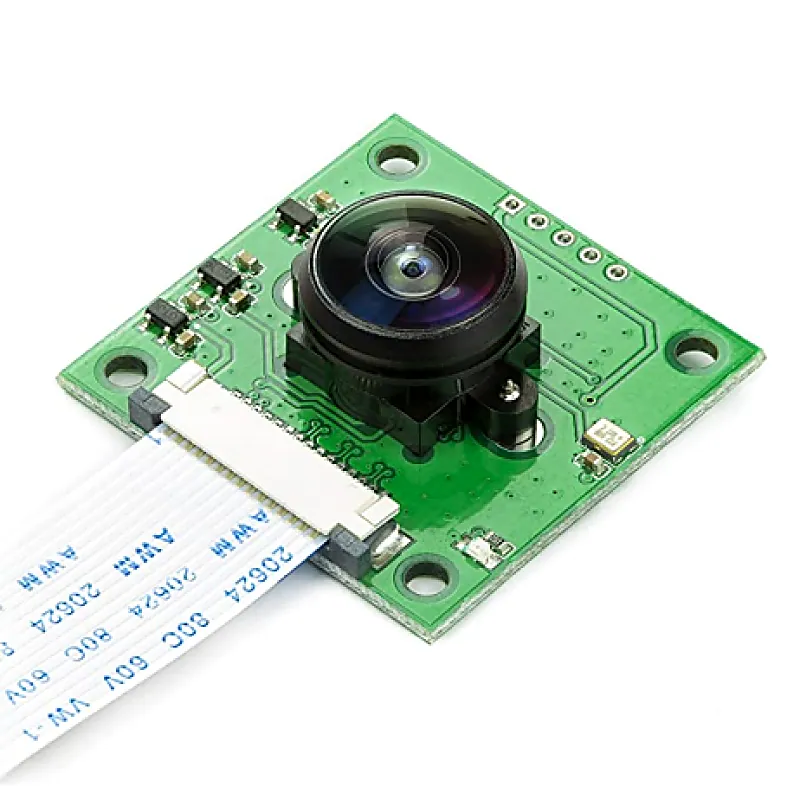

Arducam 5MP OV5647 Camera Board with LS-40180 Fisheye Lens M12x0.5 Mount for Raspberry Pi

Arducam OV5647 Camera Board with LS-40180 Fisheye Lens M12x0.5 Mount is a custom designed add-on for Raspberry Pi. It attaches to Raspberry Pi by way of one of the two small sockets on the boards upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data. The camera is connected to the BCM2835 processor on the Pi via the CSI bus, a higher bandwidth link that carries pixel data from the camera back to the processor. This bus travels along the ribbon cable that attaches the camera board to the Pi. The camera is supported in the latest version of Raspbian, Raspberry Pis preferred operating system. Useful link: To use this camera, please follow this tutorial for hardware and software setup. Application: Cellular phones, PDAs, Toys Other battery-powered products Where the official module fails in terms of focusing and Field of View, etc. Features: Lens holder: M12x0.5 5MPixel sensor Integral IR filter Max frame rate: 30fps Connection by a flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector S5 on Raspberry Pi computer board The Camera Lens for Raspberry Pi Camera Board is Ls-40180 FishEye Lens OmniVision 5647 sensor in a fixed-focus module with replaceable Lense Package Includes: 1 x Arducam 5MP OV5647 Camera Board with LS-40180 Fisheye Lens M12x0.5 Mount for Raspberry Pi Attachments : Download Download
