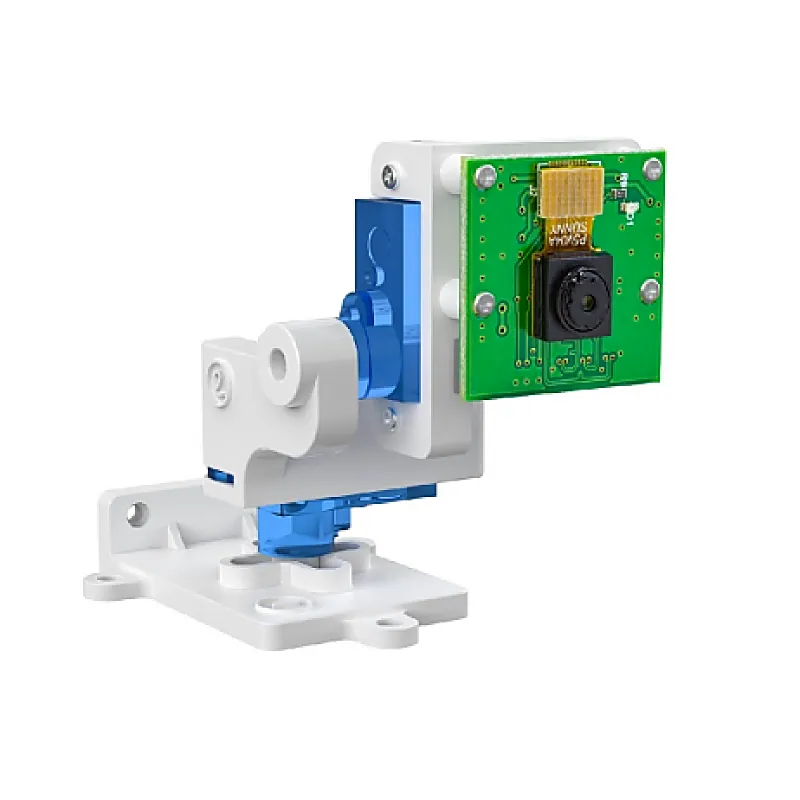

Arducam 5MP OV5647 Pan Tilt Camera for Raspberry Pi

This is an all-new pan and tilt mechanism for the 5MP OV5647 camera, which is compatible with the raspberry pi. This mechanism can move your camera in two dimensions with 180 degrees horizontal and 145 degrees vertical movements. The PTZ camera controller board outputs the PWM signals to drive the servo motors directly. Therefore, this can be used to monitor places that should be covered by multiple ones commonly in the surveillance system. Note: Raspberry Pi shown in the image is not included you have to purchase it separately Download link: To use this camera, it is necessary to do hardware and software setup. To do both , please follow the instructions given in the link . Applications: IoT cameras Robot cameras Wildlife cameras Other security and surveillance projects Features: 1.Camera Sensor: OV5647 Resolution: 5MP 2592H x 1944V Frame Rate:30fps@1080P,60fps@720P IR Sensitivity: Integral IR filter, visible light only Field of View: 54(H) x 41(V) Camera Board Dimension: 25mm x 24mm 2.Digital Servo Torque: 0.6 kg/cm at 3.6V, 0.8 kg/cm at 4.8V Operating Speed: 0.13sec/60 at 3.6V, 0.09sec/60 at 4.8V Operating Voltage: 3.6v4.8v Operating Current: 350mA Dead Band: 3 usec Dimension: 20mm x 8.75mm x 22mm 3.Control Board PWM Driver: PCA9685 PWM resolution: 12-bit Ambient light sensor: TSL2581FN Ambient light resolution: 16-bit Communication interface: I2C Operating voltage: 3.3V/5V Dimension: 25mm x 61mm Package Includes: 1 x 5MP camera for Raspberry Pi with a 15cm 15 pin camera cable for Raspberry Pi 2 x Digital servos 1 set epoxy bracket pieces with screws 1 x PWM control board 4 x Female to female jumper wires (The wire has no fixed color) 2 x Male to female jumper wires (The wire has no fixed color) Attachments : Download
