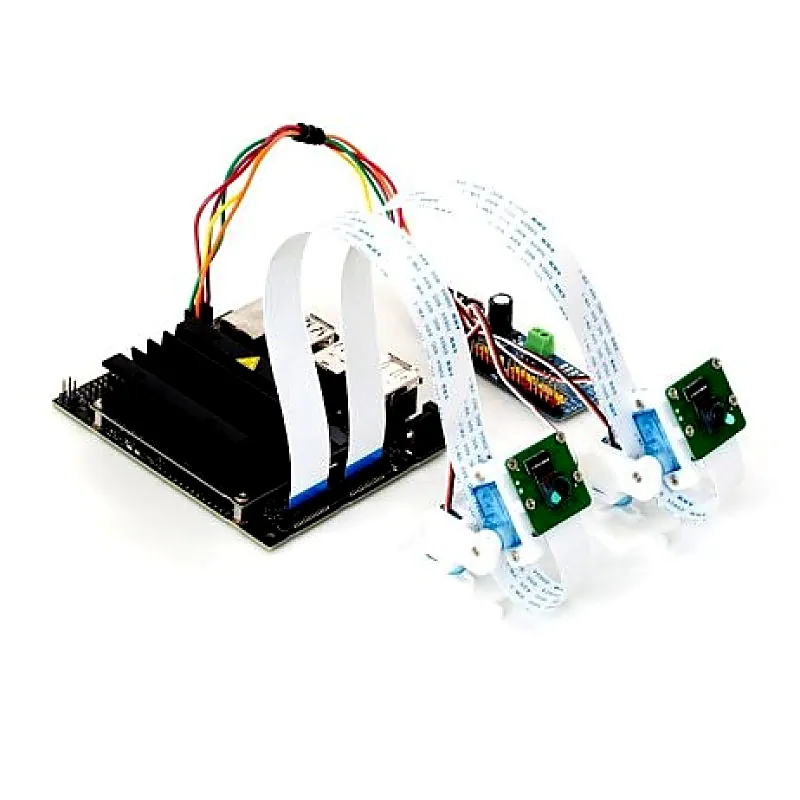

Arducam Pan Tilt Camera Bundle for Nvidia Jetson Xavier NX/Nano

This Arducam Pan Tilt Camera Bundle for Nvidia Jetson Xavier NX/Nano is a complete pan and tilt kit for Nvidia Jetson Xavier NX/Nano boards. The mechanism is based on the GH-S37D digital servos for faster speeds and higher torque and better holding capabilities. They are controlled via a PWM servo controller board which can control up to 16 servos. Useful link: To use this camera, please follow this tutorial for hardware and software setup. Applications: Home Security and Surveillance Robotics DIY Projects Specifications And Features: 1. Camera Sensor: IMX219 Resolution: 8MP 3280H x 2464V Frame Rate:21fps@8MP;60fps@1080P,180fps@720P IR Sensitivity: Integral IR filter, visible light only Field of View: 62.2(H) Camera Board Dimension: 25mm x 24mm 2. Digital Servo Torque: 0.6 kg/cm at 3.6V, 0.8 kg/cm at 4.8V Operating Speed: 0.13sec/60 at 3.6V, 0.09sec/60 at 4.8V Operating Voltage: 3.6v4.8v Operating Current: 350mA Dead Band: 3 usec Dimension: 20mm x 8.75mm x 22mm 3. Control Board PWM Driver: PCA9685 PWM resolution: 12-bit Ambient light sensor: TSL2581FN Ambient light resolution: 16-bit Communication interface: I2C Operating voltage: 3.3V/5V Dimension: 25mm x 61mm Package Includes: 2 x 8MP IMX219 cameras for Jetson Nano/Xavier NX with 30cm camera cables 4 x Digital servos 2 sets epoxy bracket pieces with screws 1 x PWM control board 5 x Female to female jumper wires (The wire has no fixed color) Attachments : Download
