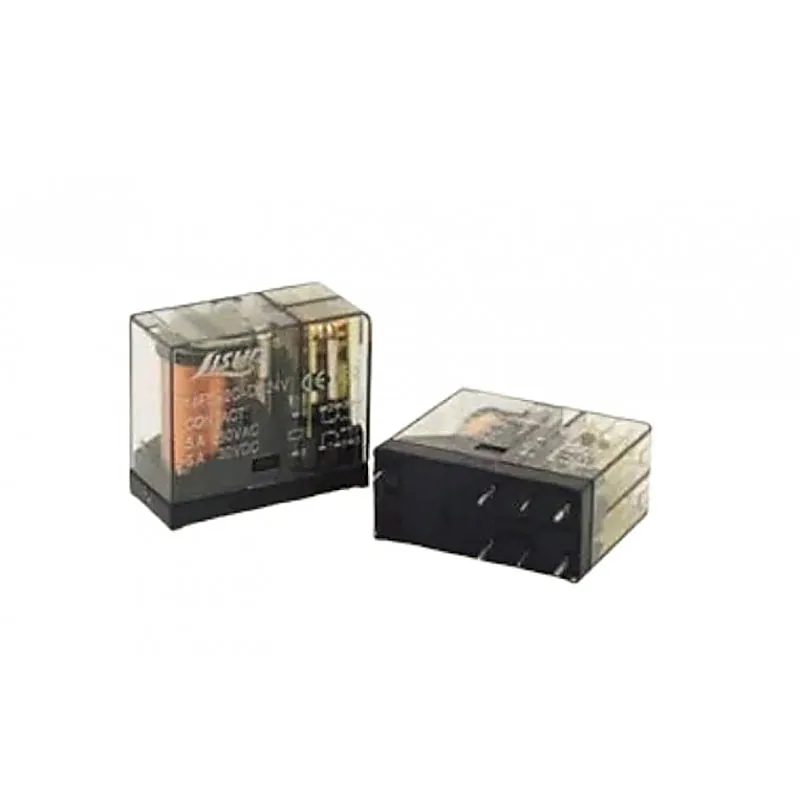

Asiaon 5V 5A DC JQX-14FC-2Z-5V Glass Type 8-Pin DPDT PCB Mount Power Relay

Asiaon 5V 5A DC JQX-14FC-2Z-5V Glass Type 8-Pin DPDT PCB Mount Power Relay

Asiaon 5V 5A DC JQX-14FC-2Z-5V Glass Type 8-Pin DPDT PCB Mount Power Relay Features: Heavy load, suitable for heavy power reverse. Small size, suitable for high-density mounting. Up to 5000VAC dielectric strength. Between open contacts of JQX-14FC 3000VAC dielectric strength. Contact gap of JQX-14FC

+ 18% GST (added at checkout)

In stock — 229 units ready

• Heavy load, suitable for heavy power reverse.
• Small size, suitable for high-density mounting.
• Up to 5000VAC dielectric strength. Between open contacts of JQX-14FC 3000VAC dielectric strength.
• Contact gap of JQX-14FC :21.5mm=3mm
• Suitable for remote control TV set, copy machine, sales machine and air conditioner etc.
• Type : JQX-14FC-2Z
• Switching Current (A,Res.load) : 5A
• Contact arrangement : 2 Form C
• Contact configuration : 2Z
• Contact material : AgCdO
• Coil voltage : 5
• Coil voltage form : DC
• Contact capacity (v) : 240VAC
• Insulation resistance : ≥100MΩ(500VDC)
• Ambient temperature : -40℃～+70℃（No condensation)
• Terminal type : PCB mounting
• Rated coil power : 0. 55W
• Contact Form : DPDT
