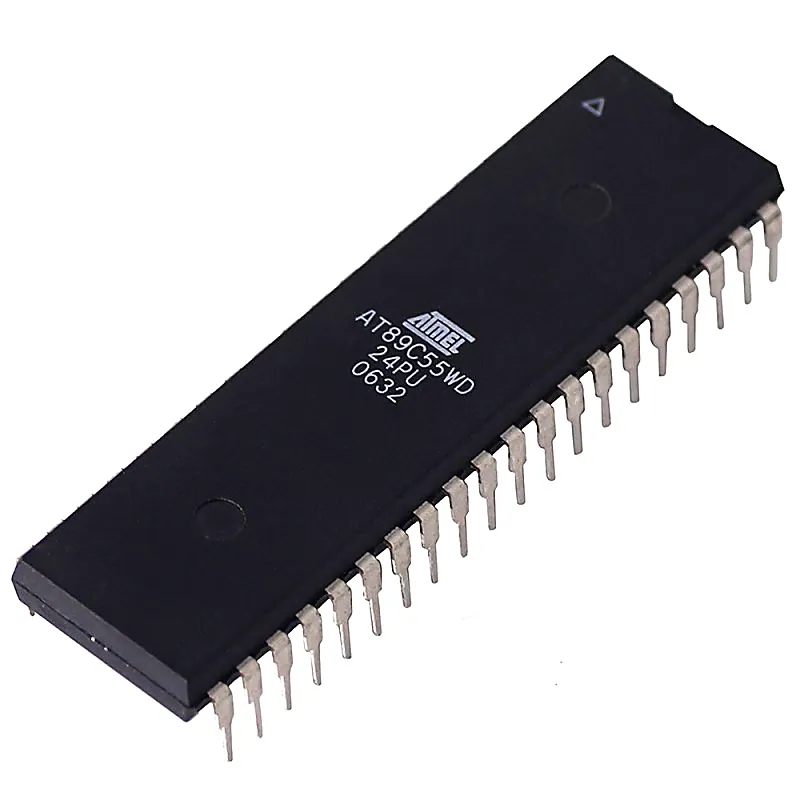

AT89C55 Microcontroller - 24MHz - 8 Bit - 40 Pin

The AT89C55 is a 8-bit low-power High-performance CMOS Microcontroller with 20kB of flash programmable read only memory and 256 bytes of RAM. The device is manufactured using Atmel's high-density non-volatile memory technology and is compatible with the industry standard 80C51 and 80C52 instruction set and pinout. The on-chip Flash allows the program memory to be user programmed by a conventional non-volatile memory programmer. By combining a versatile 8-bit CPU with flash on a monolithic chip, the Atmel AT89C55 is a powerful microcomputer which provides a highly flexible and cost effective solution to many embedded control applications. The AT89C55 provides the following standard features 20kB of Flash, 256 bytes of RAM, 32 I/O lines, three 16-bit timer/counters, a six-vector, two-level interrupt architecture, a full-duplex serial port, on-chip oscillator and clock circuitry. Features:- Compatible with MCS-51 products 20kB Reprogrammable flash memory 10,000 Write/erase cycles endurance Three-level program memory lock 256 x 8-bit Internal RAM 32 Programmable I/O lines Three 16-bit timers/counters Eight interrupt sources Programmable serial channel Low-power idle and power-down modes Interrupt recovery from power-down mode Hardware watchdog timer Dual data pointer Power-off flag
