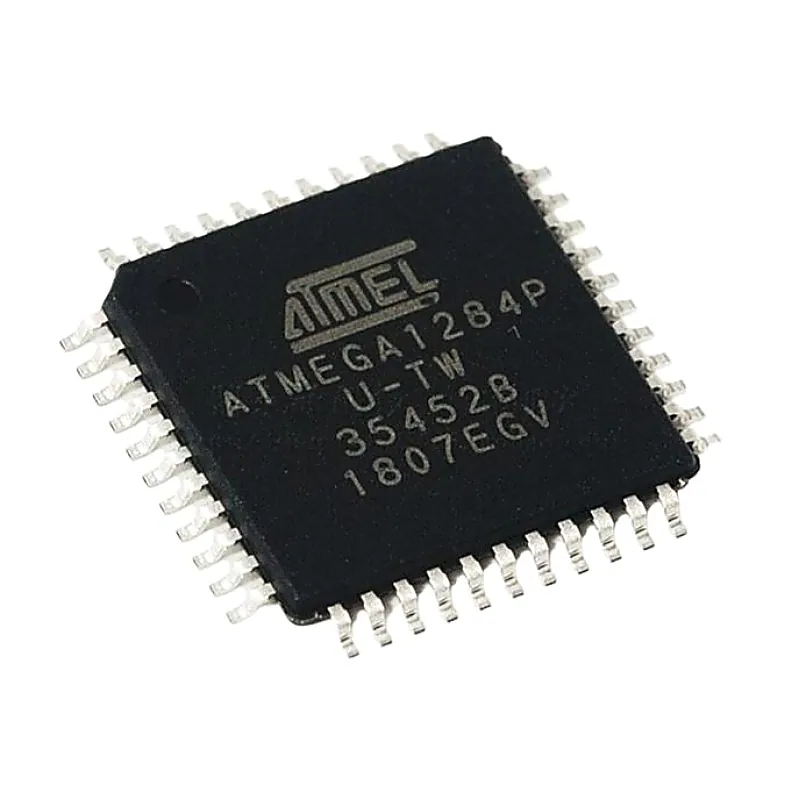

ATMEGA1284P - AU Microcontroller - (SMD Package) - TQFP - 44 Pin Microcontroller

The ATMEGA 1284P is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA1284P achieves through puts approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. It is a 8-bit Microcontroller with 128K Bytes In-System Programmable Flash. Features:- • High-performance, low-power 8-bit Atmel® AVR® Microcontroller • Advanced RISC architecture ̶ 131 powerful Instructions – most single-clock cycle execution ̶ 32 × 8 general purpose working registers ̶ Fully static operation ̶ Up to 20MIPS throughput at 20MHz ̶ On-chip 2-cycle multiplier • High endurance non-volatile memory segments ̶ 16/32/64/128KBytes of In-System Self-programmable Flash program memory ̶ 512/1K/2K/4KBytes EEPROM ̶ 1/2/4/16KBytes Internal SRAM ̶ Write/Erase Cycles: 10,000 Flash/ 100,000 EEPROM ̶ Data retention: 20 years at 85°C/ 100 years at 25°C(1) ̶ Optional Boot Code Section with Independent Lock Bits • In-System Programming by On-chip Boot Program • True Read-While-Write Operation ̶ Programming Lock for Software Security • Atmel QTouch® library support ̶ Capacitive touch buttons, sliders and wheels ̶ QTouch and QMatrix acquisition ̶ Up to 64 sense channels • JTAG (IEEE std. 1149.1 Compliant) Interface ̶ Boundary-scan Capabilities According to the JTAG Standard ̶ Extensive On-chip Debug Support ̶ Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface • Peripheral Features ̶ Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes ̶ One/two 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode ̶ Real Time Counter with Separate Oscillator ̶ Six PWM Channels ̶ 8-channel, 10-bit ADC • Differential mode with selectable gain at 1×, 10× or 200× ̶ Byte-oriented Two-wire Serial Interface ̶ Two Programmable Serial USART ̶ Master/Slave SPI Serial Interface ̶ Programmable Watchdog Timer with Separate On-chip Oscillator ̶ On-chip Analog Comparator ̶ Interrupt and Wake-up on Pin Change • Special Microcontroller Features ̶ Power-on Reset and Programmable Brown-out Detection ̶ Internal Calibrated RC Oscillator ̶ External and Internal Interrupt Sources ̶ Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby • I/O and Packages ̶ 32 Programmable I/O Lines ̶ 40-pin PDIP, 44-lead TQFP, 44-pad VQFN/QFN/MLF ̶ 44-pad DRQFN – 49-ball VFBGA • Operating Voltages ̶ 1.8 - 5.5V • Speed Grades ̶ 0 - 4MHz @ 1.8 - 5.5V ̶ 0 - 10MHz @ 2.7 - 5.5V ̶ 0 - 20MHz @ 4.5 - 5.5V • Power Consumption at 1MHz, 1.8V, 25 ° C ̶ Active: 0.4mA ̶ Power-down Mode: 0.1µA ̶ Power-save Mode: 0.6µA (Including 32kHz RTC) Related Document:- ATMEGA1284P-4U SMD Data Sheet
