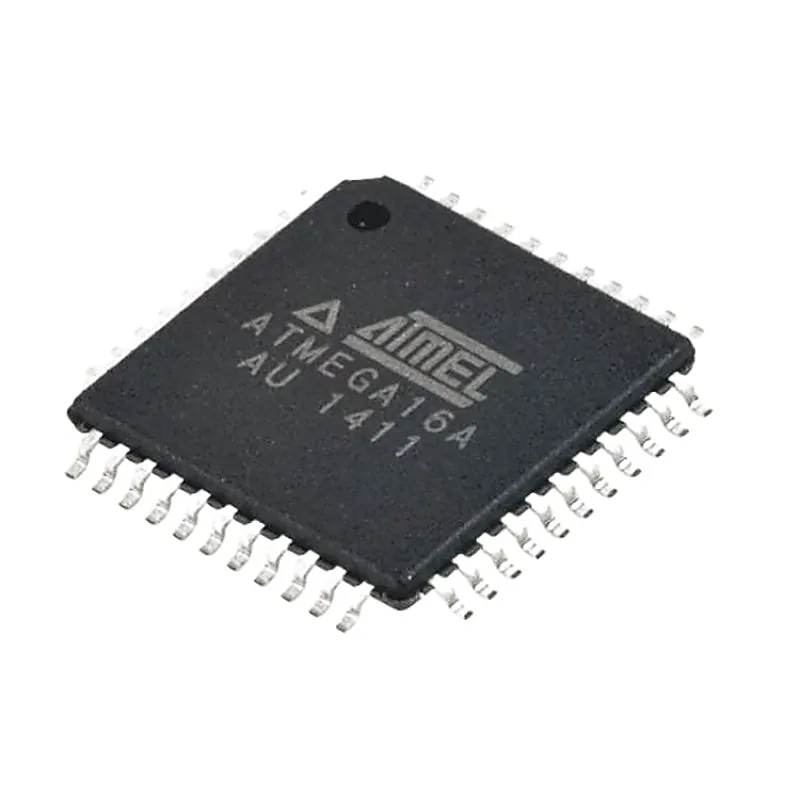

ATMEGA16A - AU Microcontroller - (SMD Package) - TQFP - 44 Pin Microcontroller

The ATMEGA16A is a low-power CMOS 8-bit microcontroller based on the Atmel AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA16A achieves through puts approaching 1MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. Features:- • High-performance, Low-power Atmel AVR 8-bit Microcontroller • Advanced RISC Architecture - 133 Powerful Instructions - 32 × 8 General Purpose Working Registers + Peripheral Control Registers - Fully Static Operation - Up to 16MIPS Throughput at 16MHz - On-chip 2-cycle Multiplier • High Endurance Non-volatile Memory segments - 16KBytes of In-System Self-programmable Flash program memory - 512Bytes EEPROM - 1KByte Internal SRAM - Write/Erase Cycles: 10,000 Flash/100,000 EEPROM - Data retention: 20 years at 85°C/100 years at 25°C(1) - Optional Boot Code Section with Independent Lock Bits • In-System Programming by On-chip Boot Program • True Read-While-Write Operation - Programming Lock for Software Security • JTAG (IEEE std. 1149.1 Compliant) Interface - Boundary-scan Capabilities According to the JTAG Standard - Extensive On-chip Debug Support Atmel-8151 - Programming of Flash, EEPROM, Fuses and Lock Bits through the JTAG Interface • Peripheral Features – Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes – One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode – Real Time Counter with Separate Oscillator – Four PWM Channels – 8-channel, 10-bit ADC • 8 Single-ended Channels • 7 Differential Channels in TQFP Package Only • 2 Differential Channels with Programmable Gain at 1x, 10x, or 200x – Byte-oriented Two-wire Serial Interface – Programmable Serial USART – Master/Slave SPI Serial Interface – Programmable Watchdog Timer with On-chip Oscillator – On-chip Analog Comparator • Special Microcontroller Features – Power-on Reset and Programmable Brown-out Detection – Internal Calibrated RC Oscillator – External and Internal Interrupt Sources – Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended Standby ' • I/O and Packages ̶ 32 Programmable I/O Lines ̶ 40-pin PDIP, 44-lead TQFP, and 44-pad QFN/MLF • Operating Voltages – 2.7 - 5.5V • Speed Grades – 0 - 16MHz • Power Consumption @ 1MHz, 3V, and 25°C ̶ Active: 0.6mA ̶ Idle Mode: 0.2mA ̶ Power-down Mode: < 1µA Specification:-
