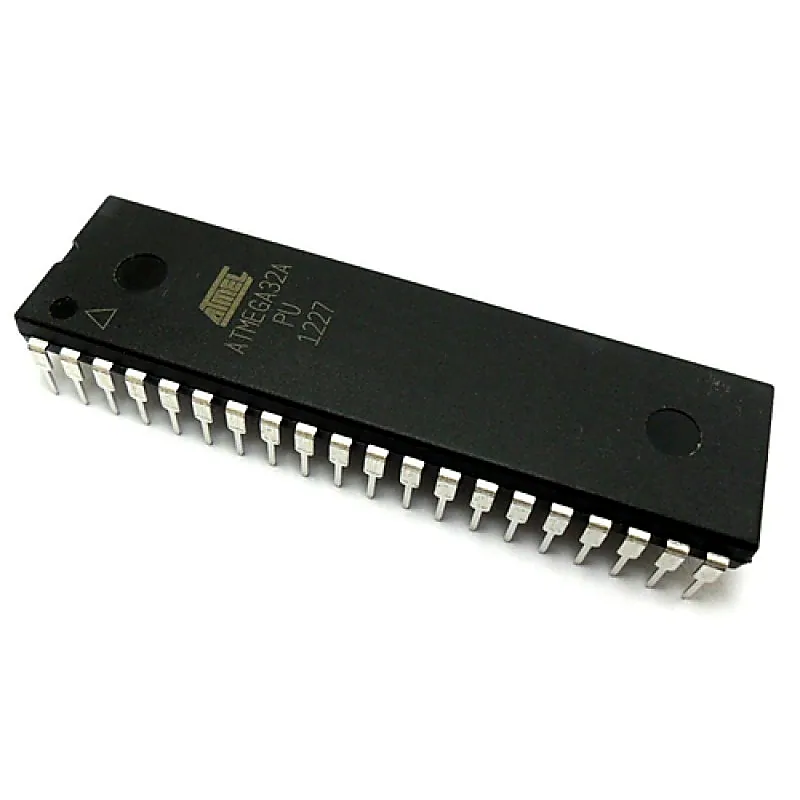

ATMega32A Microcontroller

ATMEGA32A is a 40 pin, 8-bit AVR RISC-based microcontroller from Atmel. It is a low power, high performance microcontroller featuring 32KB self-programming flash program memory, 2KB SRAM, 1KB EEPROM, 8 channel 10-bit A/D converter and JTAG interface for on-chip-debug. The device acheives 16 MIPS throughput at 16 Mhz at 2.7-5.5V operation. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, allowing you to optimize power consumption versus processing speed. Features of ATmega32A Microcontroller:- Operating Voltage: 4.5V to 5V Advanced RISC Architecture. 32 x 8 General Purpose Working Registers. Fully Static Operation. Up to 16 MIPS Throughput at 16 MHz. On-chip 2-cycle Multiplier. High Endurance Non-volatile Memory segments. 32 Kbytes of In-System Self-programmable Flash program memory. 1024 Bytes EEPROM. 2 Kbyte Internal SRAM. Write/Erase Cycles: 10,000 Flash/100,000 EEPROM. Data retention: 20 years at 85°C/100 years at 25°C(1). Optional Boot Code Section with Independent Lock Bits. In-System Programming by On-chip Boot Program. True Read-While-Write Operation. Programming Lock for Software Security. Extensive On-chip Debug Support. 8 Single-ended Channels. Byte-oriented Two-wire Serial Interface. Programmable Serial USART. Master/Slave SPI Serial Interface. Programmable Watchdog Timer with Separate On-chip Oscillator. Applications of ATmega32A Microcontroller:- Multiple DIY projects.. Projects requiring more than logical control for devices. Microcontroller applications for multiple device interface/Control.
