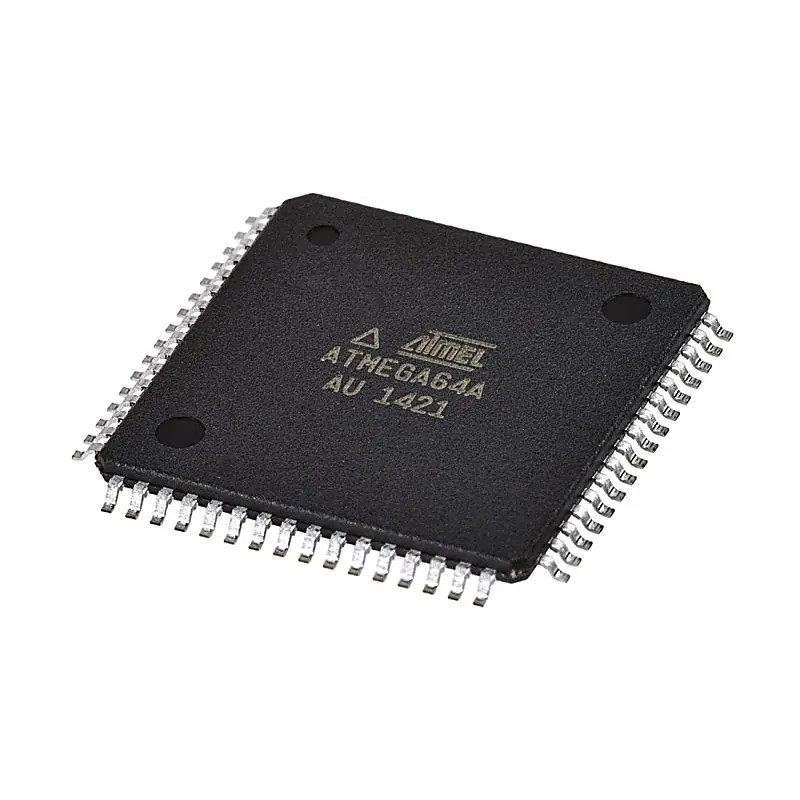

ATMEGA64A - AU Microcontroller - (SMD TQFP Package) - 8-Bit 64 Pin 64KB Flash Microcontroller

The ATMEGA64A is a low-power CMOS 8-bit microcontroller based on the AVR® enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA64A achieves through puts close to 1MIPS per MHz. This empowers system designer to optimize the device for power consumption versus processing speed. Features:- • High-performance, Low-power Atmel AVR 8-bit Microcontroller • Advanced RISC Architecture - 131 powerful instructions – most single clock cycle execution - 32 × 8 General Purpose Working Registers + Peripheral Control Registers - Fully Static Operation - Up to 16MIPS Throughput at 16MHz - On-chip 2-cycle Multiplier • High Endurance Non-volatile Memory segments - 64Kbytes of In-System Self-programmable Flash program memory - 2Kbytes EEPROM - 4Kbytes Internal SRAM - Write/erase cycles: 10,000 flash/100,000 EEPROM - Data retention: 20 years at 85°C/100 years at 25°C(1) - Optional Boot Code Section with Independent Lock Bits • In-System Programming by On-chip Boot Program • True Read-While-Write Operation - Programming Lock for Software Security • JTAG (IEEE std. 1149.1 Compliant) Interface – Boundary-scan Capabilities According to the JTAG Standard – Extensive On-chip Debug Support – Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface • Peripheral Features – Two 8-bit Timer/Counters with separate prescaler and compare mode – Two Expanded 16-bit Timer/Counters with Separate Prescaler, Compare Mode and Capture Mode – Real Time Counter with Separate Oscillator – Two 8-bit PWM Channels – 8-channel, 10-bit ADC • 8 Single-ended Channels • 7 Differential Channels • 2 Differential Channels with Programmable Gain at 1x, 10x, or 200x – Two Programmable serial USART – Master/Slave SPI Serial Interface – Programmable Watchdog Timer with On-chip Oscillator – On-chip Analog Comparator – Byte Oriented 2-wire Serial Interface • Special Microcontroller Features – Power-on Reset and Programmable Brown-out Detection – Internal Calibrated RC Oscillator – External and Internal Interrupt Sources – Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended Standby ' • I/O and Packages ̶ 53 Programmable I/O Lines ̶ 64-lead TQFP and 64-pad QFN/MLF • Operating voltage – 2.7 - 5.5V • Speed Grades – 0 - 16MHz Specification:- Parameters Values Program Memory Type Flash Program Memory Size (KB) 64 CPU Speed (MIPS/DMIPS) 16 SRAM (B) 4,096 Data EEPROM/HEF (bytes) 2048 Digital Communication Peripherals 2-UART, 1-SPI, 1-I2C Capture/Compare/PWM Peripherals 2 Input Capture, 2 CCP, 8PWM Timers 2 x 8-bit, 4 x 16-bit Number of Comparators 1 Temperature Range (°C) -40 to 85 Operating Voltage Range (V) 2.7 to 5.5 Pin Count 64 Related Document:- ATMEGA64A SMD Data Sheet
