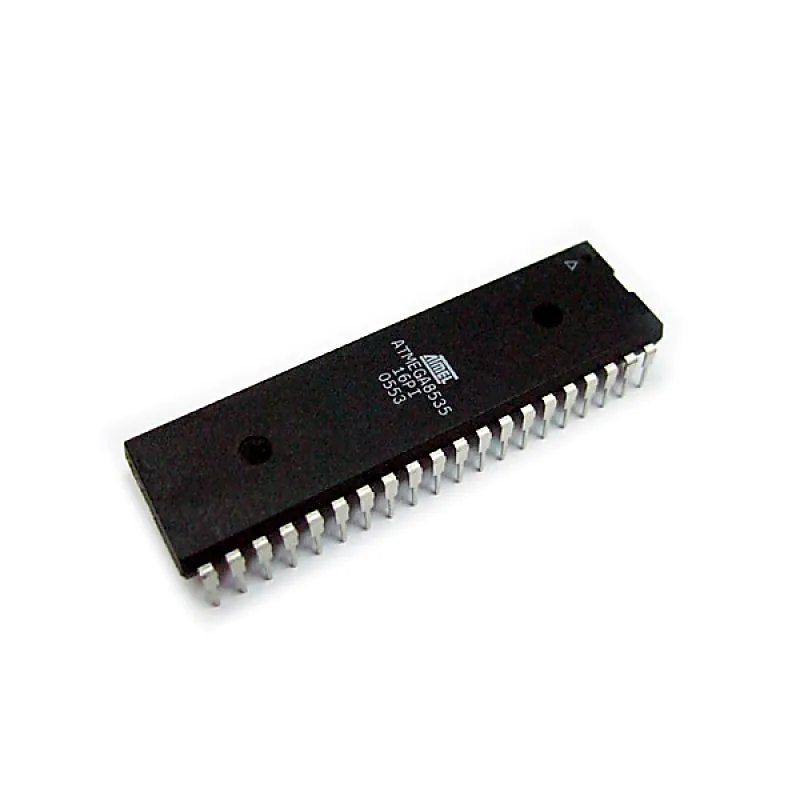

ATMEGA8535 Microcontroller

Atmega8535 is a high-performance, low-power Atmel 8-bit AVR RISC-based microcontroller combines 8KB of programmable flash memory, 544B SRAM, 512B EEPROM, and an 8-channel 10-bit A/D converter. The device supports throughput of 16 MIPS at 16MHz and operates between 4.5-5.5 volts. By executing instructions in a single clock cycle, the device achieves through puts approaching 1 MIPS per MHz, balancing power consumption and processing speed. Features of Atmega8535 Microcontroller:- Flash (kBytes): 8 kBytes Pin Count: 44 Max. Operating Freq. (MHz): 16 MHz CPU: 8-bit AVR No of Touch Channels: 16 Hardware QTouch Acquisition: No Max I/O Pins: 32 Ext Interrupts: 3 USB Speed: No USB Interface: No SPI: 1 TWI (I2C): 1 UART: 1 Graphic LCD: No Video Decoder: No Camera Interface: No ADC Channels: 8 ADC Resolution (bits): 10 ADC Speed (ksps): 15 Analog Comparators: 1 Resistive Touch Screen: No DAC Channels: 0 DAC Resolution (bits): 0 Temp. Sensor: No Crypto Engine: No SRAM (kBytes): 0.5 EEPROM (Bytes): 512 Self Program Memory: Yes External Bus Interface: 0 DRAM Memory: No NAND Interface: No pico-Power: No Temp. Range (deg C): -40 to 85 I/O Supply Class: 2.7 to 5.5 Operating Voltage (Vcc): 2.7 to 5.5 FPU: No MPU / MMU: no / no Timers: 3 Output Compare Channels: 4 Input Capture Channels: 1 PWM Channels: 4 32kHz RTC: Yes Calibrated RC Oscillator: Yes Watchdog: Yes CAN: 0 LIN: 0 Ethernet: 0 I2S: No
