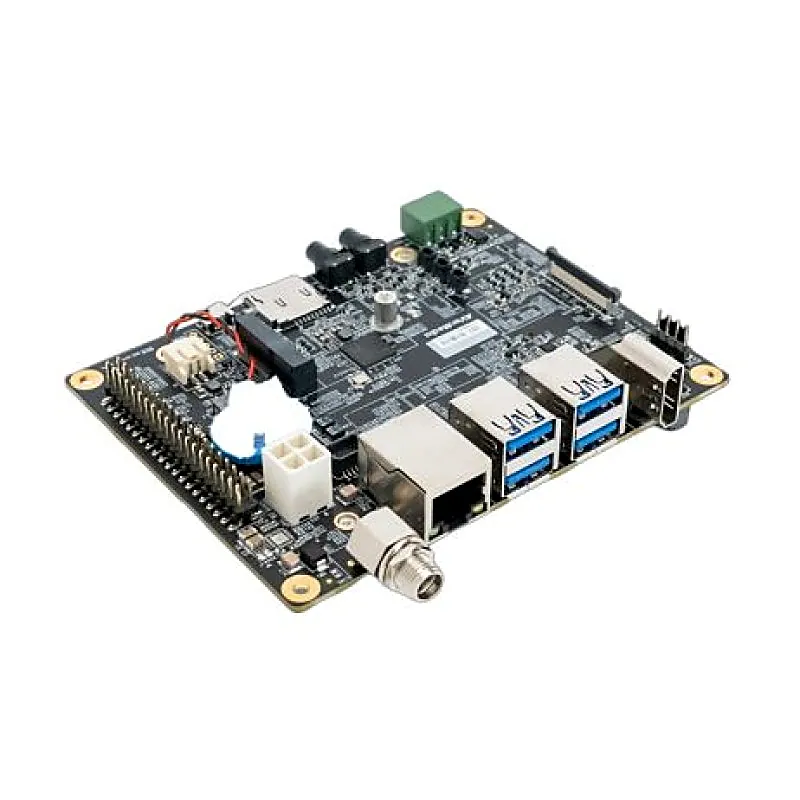

Avermedia D131 Carrier Board for Orin NX/Orin Nano

AVerMedias D131 Carrier board equips powerful NVIDIA Jetson Orin NX/ Orin Nano modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities. AVerAI D131 is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications. AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIAs JetPackTM SDK. The Avermedia D131 Carrier Board is a robust and versatile platform designed for the NVIDIA Jetson Orin NX and Orin Nano modules, ideal for developers working on AI, robotics, and IoT projects. This carrier board provides essential features and connectivity options to facilitate rapid development and deployment of sophisticated applications. Features: Multiple Camera Inputs: 2x 2-lane and 1x 4-lane MIPI CSI-2 connections. Gigabit Ethernet: 1x RJ-45 port with optional PoE. High-Resolution HDMI Output: Supports 4K at 60Hz (Orin NX) and 30Hz (Orin Nano). USB Connectivity: 4x USB 3.2 Gen 1 Type A and 1x USB 2.0 Micro-B for recovery. M.2 Slots: 1x for SSD and 1x for Wi-Fi (Key E 2230). 40-Pin Expansion Header: Supports UART, SPI, I2C, GPIOs, and CAN.
