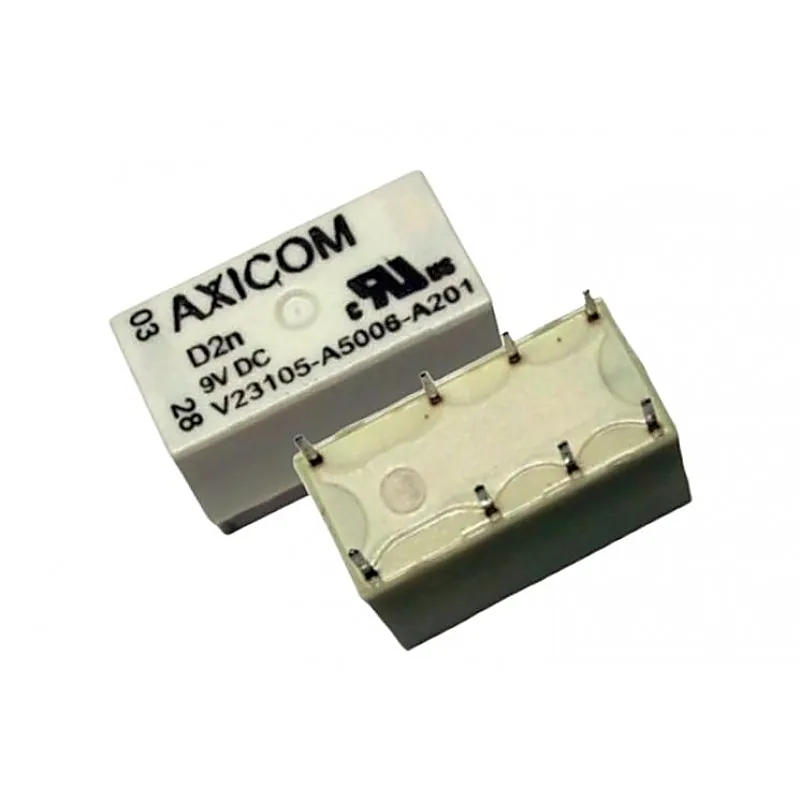

AXICOM 9V 2A DC V23105-A5006-A201 8 Pin DPDT PCB Mount Telecom Relay
AXICOM 9V 2A DC V23105-A5006-A201 8 Pin DPDT PCB Mount Telecom Relay
AXICOM 9V 2A DC V23105-A5006-A201 8 Pin DPDT PCB Mount Telecom Relay Features:- Universal print relay. Monostable. 1 winding with 2 changeover contacts. For installation in printed circuits. Plastic housing, waterproof. High-voltage resistant according to FCC Part 68: 1.5kV (10/160μs) Switching capa
+ 18% GST (added at checkout)
In stock — 21 units ready
- Universal print relay.
- Monostable.
- 1 winding with 2 changeover contacts.
- For installation in printed circuits.
- Plastic housing, waterproof.
- High-voltage resistant according to FCC Part 68: 1.5kV (10/160μs)
- Switching capacity from small signals to 2A.
- Response/release/bounce time: 5ms/4ms/3ms.
- Standard Pinning.
- Areas of application: Communication Technology, Consumer Electronics, telecommunications.
- Type : V23105-A5303-A201
- Nominal coil voltage : 9VDC
- Response voltage (min.) : 8.4V /DC
- Response voltage (max.) : 24.3VDC
- Control type : monostable, 1 coil
- Resistance (coil) : 720Ω
- Contact type : 2 changers
- Contact material : AgNi + Au
- Switching voltage (max.) : 220VDC to 250V /AC
- Switching current (max.) : 2 A
- Max. switching capacity : 60W to 125VA
- Connection : Solder pins
- Minimum temperature : -25 ℃
- Max Temperature : +85 °C
- Dimension (L x W x H) : 20.3 x 10.1 x 11.45 mm
- RoHS Compliant : Yes
- Product Type : Print relay
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
AXICOM 9V 2A DC V23105-A5006-A201 8 Pin DPDT PCB Mount Telecom Relay Features:- Universal print relay. Monostable. 1 winding with 2 changeover contacts. For installation in printed circuits. Plastic housing, waterproof. High-voltage resistant according to FCC Part 68: 1.5kV (10/160μs) Switching capacity from small signals to 2A. Response/release/bounce time: 5ms/4ms/3ms. Standard Pinning. Areas of application: Communication Technology, Consumer Electronics, telecommunications. Specifications: Type : V23105-A5303-A201 Nominal coil voltage : 9VDC Response voltage (min.) : 8.4V /DC Response voltage (max.) : 24.3VDC Control type : monostable, 1 coil Resistance (coil) : 720Ω Contact type : 2 changers Contact material : AgNi + Au Switching voltage (max.) : 220VDC to 250V /AC Switching current (max.) : 2 A Max. switching capacity : 60W to 125VA Connection : Solder pins Minimum temperature : -25 ℃ Max Temperature : +85 °C Dimension (L x W x H) : 20.3 x 10.1 x 11.45 mm RoHS Compliant : Yes Product Type : Print relay Package Includes: 1 x AXICOM 9V 2A DC V23105-A5006-A201 8 Pin DPDT PCB Mount Telecom Relay
