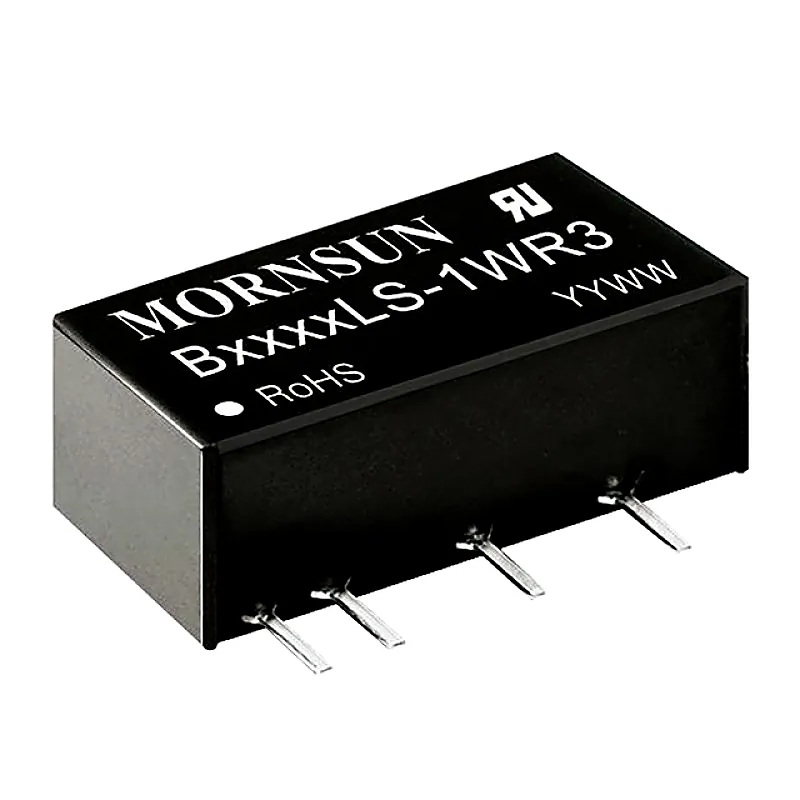

B0505LS-1WR3 Mornsun 5V to 5V DC-DC Converter 1W Power Supply Module - SIP Package

This B0505LS-1WR3 Mornsun 5V to 5V DC-DC Converter 1W Power Supply Module from Mornsun is specially designed for applications where an isolated (two isolated) voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Equipped with numerous features, including a SIP package, high efficiency and an operating temperature of -40°C to +105°C. Features: Meet UL, CE, CB requirements. Continuous short-circuit protection No-load input current as low as 5mA Operating temperature range: -40℃ to +105℃ High efficiency up to 85% I/O isolation test voltage 1.5k VDC Industry standard pin-out SIP package IEC62368, UL62368, EN62368 approved Specifications:- Model Number: B0505LS-1WR3 Input Voltage range: 4.5-5.5 V Nominal voltage: 5 Vdc Output voltage: 5V Output current: 200/20(mA) Wattage: 1W Isolation Voltage: 1.5 kVdc Package: SIP Size: 19.65mm(Length) X 6.00mm(Width) X 10.60mm (Height) Weight: 2.1gm Package Includes:- 1 x B0505LS-1WR3 Mornsun 5V to 5V DC-DC Converter 1W Power Supply Module Related Documents:- Mornsun B0505LS-1WR3 Datasheet
