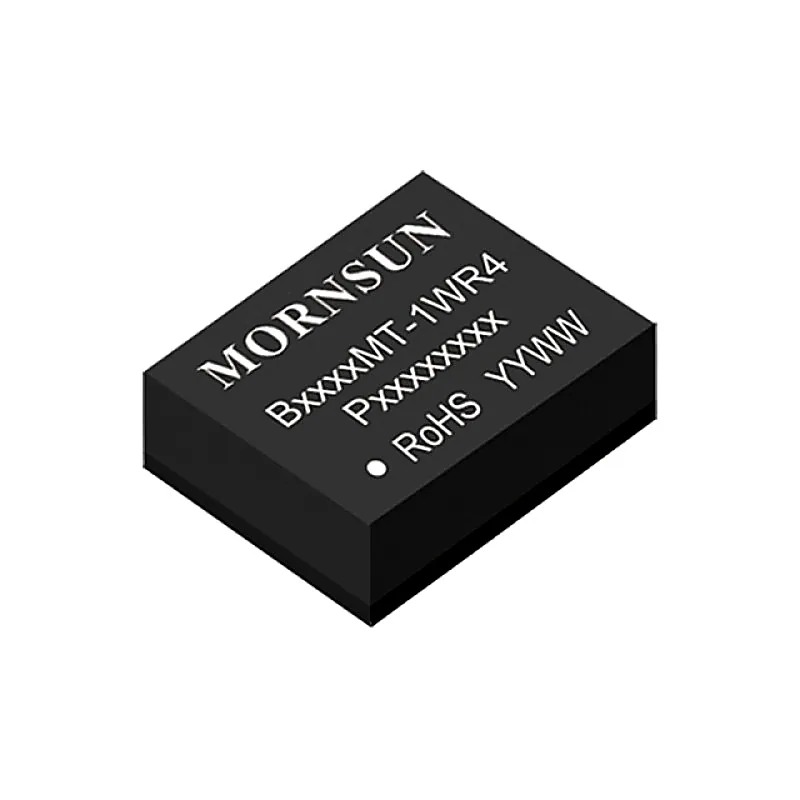

B0505MT-1WR4 Mornsun 5V to 5V DC-DC Converter 1W Power Supply Module - Ultra-Thin DFN Package

This B0505MT-1WR4 Mornsun 5V to 5V DC-DC Converter 1W Power Supply Module from Mornsun is specially designed for applications where an isolated voltage is required in a distributed power supply system and especially suitable in applications such as digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Equipped with numerous features, including a subminiature thin DFN package, high efficiency and an operating temperature of -40°C to +125°C. Features: Meet UL, CE, CB requirements. Ultra-small, ultra-thin DFN package (9.00 x 7.00 x 3.10mm) Isolation capacitance as low as 8pF I/O isolation test voltage 3k VDC Operating ambient temperature range: -40℃ to +125℃ High efficiency up to 85% Continuous short-circuit protection IEC62368/UL62368/EN62368 approved AEC-Q100 approved Specifications:- Model Number: B0505MT-1WR4 Input Voltage range: 4.5-5.5 Vdc Nominal voltage: 5 Vdc Output voltage: 5V Output current: 200/20(mA) Wattage: 1W Isolation Voltage: 3 kVdc Package: Ultra-Thin DFN Package Size: 9.00mm(Length) X 7.00mm(Width) X 3.10mm (Height) Weight: 0.5gm Package Includes:- 1 x B0505MT-1WR4 Mornsun 5V to 5V DC-DC Converter 1W Power Supply Module Related Documents:- Mornsun B0505MT-1WR4 Datasheet
