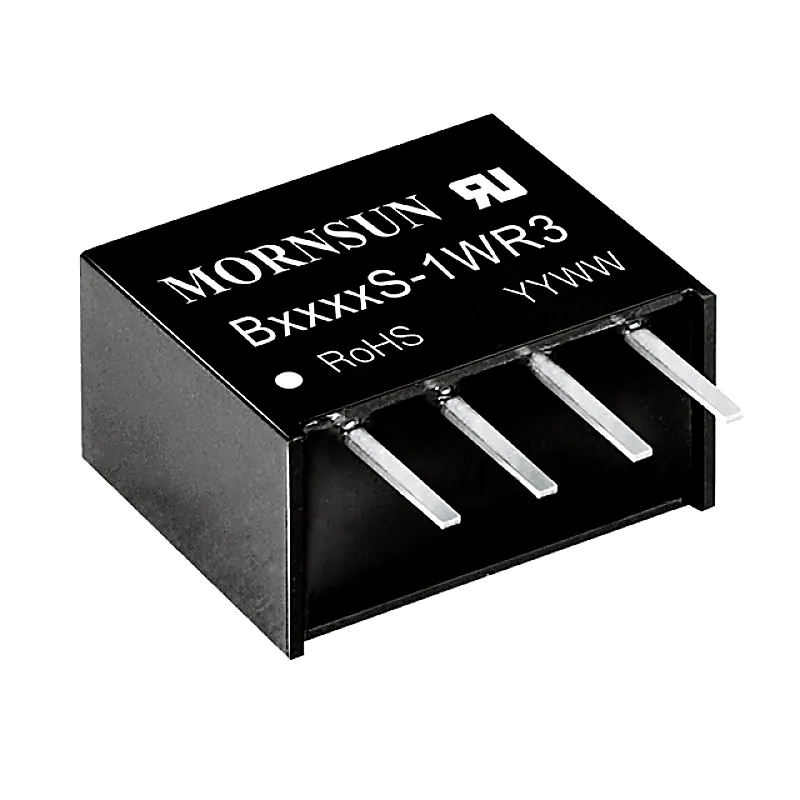

B0505S-1WR3 Mornsun 5V to 5V DC-DC Converter 1W Power Supply Module - Compact SIP Package

This B0505S-1WR3 Mornsun 5V to 5V DC-DC Converter 1W Power Supply Module from Mornsun is designed for applications where an isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Equipped with numerous features, including a compact SIP package, high efficiency and an operating temperature of -40°C to +105°C. Features: Meet UL, CE requirements. Continuous short-circuit protection No-load input current as low as 5mA Operating temperature range: -40℃ to +105℃ High efficiency up to 85% Isolation voltage:1.5K VDC/min, 3K VDC/1s International standard pin-out Compact SIP package UL62368, EN62368 approval Specifications:- Model Number: B0503S-1WR3 Input Voltage range: 4.5-5.5 Vdc Nominal voltage: 5 Vdc Output voltage: 5V Output current: 200/20(mA) Wattage: 1W Isolation Voltage: 1.5 kVdc/min, 3KVdc/1s Package: SIP Size: 11.60mm(Length) X 6.00mm(Width) X 10.16mm (Height) Weight: 1.3gm Package Includes:- 1 x B0505S-1WR3 Mornsun 5V to 5V DC-DC Converter 1W Power Supply Module SIP Package Related Documents:- Mornsun B0505S-1WR3 Datasheet
