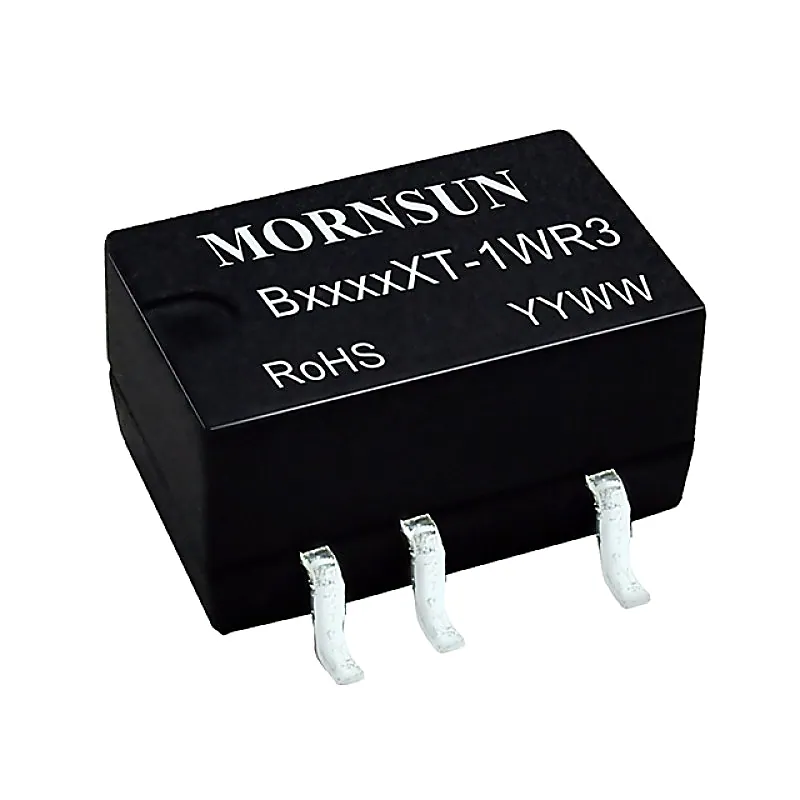

B0515XT-1WR3 Mornsun 5V to 15V DC-DC Converter 1W Power Supply Module - Compact SMD Package

This B0515XT-1WR3 Mornsun 5V to 15V DC-DC Converter 1W Power Supply Module from Mornsun is designed for applications where an isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Equipped with numerous features, including a compact Compact SMD Package, high efficiency and an operating temperature of -40°C to +105°C. Features: Meet CE, UL, CB requirements. Continuous short-circuit protection No-load input current as low as 5mA Operating ambient temperature range: -40℃ to +105℃ High efficiency up to 85% Compact SMD package I/O isolation test voltage 1.5k VDC Industry standard pin-out IEC62368, UL62368, EN62368 approved Specifications:- Model Number: B0515XT-1WR3 Input Voltage range: 4.5-5.5 Vdc Nominal voltage: 5 Vdc Output voltage: 5V Output current: 67/7(mA) Wattage: 1W Isolation Voltage: 1.5 kVdc Package: Compact SMD Size: 13.2mm(Length) X 11.40mm(Width) X 7.25mm (Height) Weight: 1.4gm Package Includes:- 1 x B0515XT-1WR3 Mornsun 5V to 15V DC-DC Converter 1W Power Supply Module - Compact SMD Package Related Documents:- Mornsun B0515XT-1WR3 Datasheet
