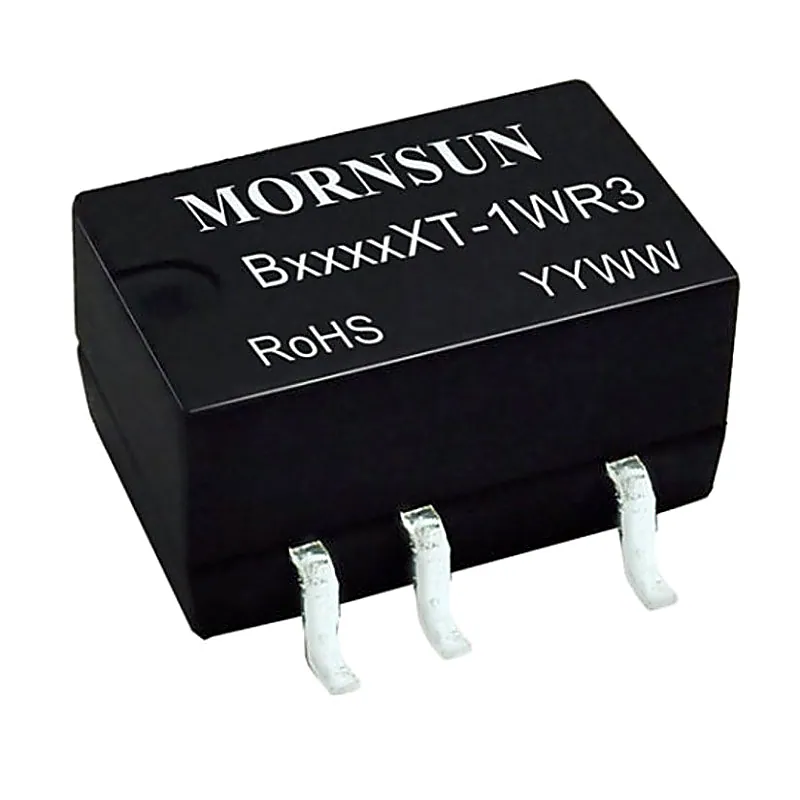

B0524XT-1WR3 Mornsun 5V to 24V DC-DC Converter 1W Power Supply Module - Compact SMD Package
B0524XT-1WR3 Mornsun 5V to 24V DC-DC Converter 1W Power Supply Module - Compact SMD Package
B0524XT-1WR3 series are specially designed for applications where an isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Features:- Continuous short-circuit
+ 18% GST (added at checkout)
In stock — 45 units ready
- Continuous short-circuit protection
- No-load input current as low as 5mA
- Operating ambient temperature range: -40℃ to +105℃
- High efficiency up to 85%
- Compact SMD package
- I/O isolation test voltage 1.5k VDC
- Industry standard pin-out
- IEC62368, UL62368, EN62368 approved
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
B0524XT-1WR3 series are specially designed for applications where an isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Features:- Continuous short-circuit protection No-load input current as low as 5mA Operating ambient temperature range: -40℃ to +105℃ High efficiency up to 85% Compact SMD package I/O isolation test voltage 1.5k VDC Industry standard pin-out IEC62368, UL62368, EN62368 approved
