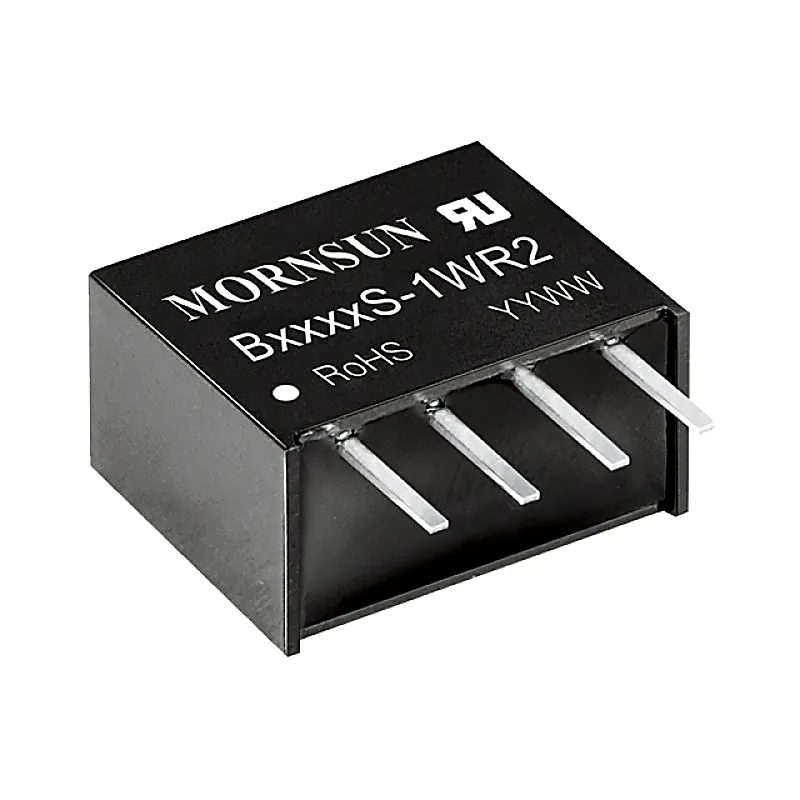

B2405S-1WR2 Mornsun 24V to 5V DC-DC Converter 1W Power Supply Module - Compact SIP Package

This B2405S-1WR2 Mornsun 24V to 5V DC-DC Converter 1W Power Supply Module from Mornsun is designed for use in distributed power supply systems and especially suitable in applications such as pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits, where: 1. The voltage of the input power supply is relatively stable with a variation of ±10%Vin or less; 2. An input to output isolation voltage of up to 1500VDC is necessary; 3. The requirement for a tight output regulation and low ripple & noise is not as strict. Equipped with numerous features, including a Compact SIP package, high efficiency and an operating temperature of -40°C to +105°C. Features: Meet UL, CE requirements. Continuous short-circuit protection High efficiency up to 80% Operating ambient temperature -40℃ to +105℃ Compact SIP/DIP package Industry standard pin-out I/O isolation test voltage 1.5k VDC IEC60950, UL60950, EN60950 approval Specifications:- Model Number: B2405S-1WR2 Input Voltage range: 21.6-26.4 Vdc Nominal voltage: 24 Vdc Output voltage: 5V Output current: 200/20(mA) Wattage: 1W Isolation Voltage: 1.5 kVdc Package: Compact SIP Size: 11.60mm(Length) X 6.00mm(Width) X 10.16mm (Height) Weight: 1.3gm Package Includes:- 1 x B2405S-1WR2 Mornsun 24V to 5V DC-DC Converter 1W Power Supply Module - Compact SIP Package Related Documents:- Mornsun B2405S-1WR2 Datasheet
