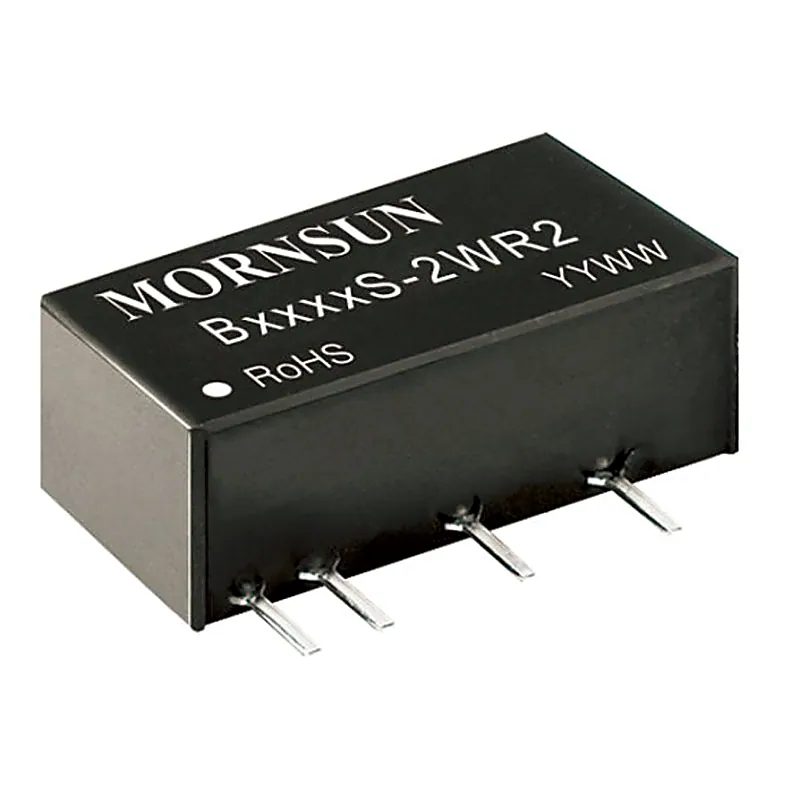

B2412S-2WR2 Mornsun 24V to 12V DC-DC Converter 2W Power Supply Module - Miniature SIP Package

B2412S-2WR2 series is designed for use in distributed power supply systems and especially suitable in applications suchas pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits, where: 1. The voltage of the input power supply is relatively stable with a variation of ±10%Vin or less; 2. An input to output isolation voltage of up to 1500VDC is necessary; 3. The requirement for a tight output regulation is not as strict Features:- High power density High efficiency up to 86% Operating ambient temperature range: -40℃ to+105℃ No external components required Miniature SIP package Industry standard pin-out I/O isolation test voltage 1.5k VDC IEC60950/UL60950/EN60950 Approved Specifications:- I/p Voltage range: 21.6-26.4 Nominal voltage:24 Vdc O/p voltage:12V O/p current:167/17(mA) Wattage:2W Isolation:1.5kVdc Package : SIP Package Includes:- 1 x B2412S-2WR2 Mornsun 24V to 12V DC-DC Converter 2W Power Supply Module - Miniature SIP Package Download DATASHEET : Download
