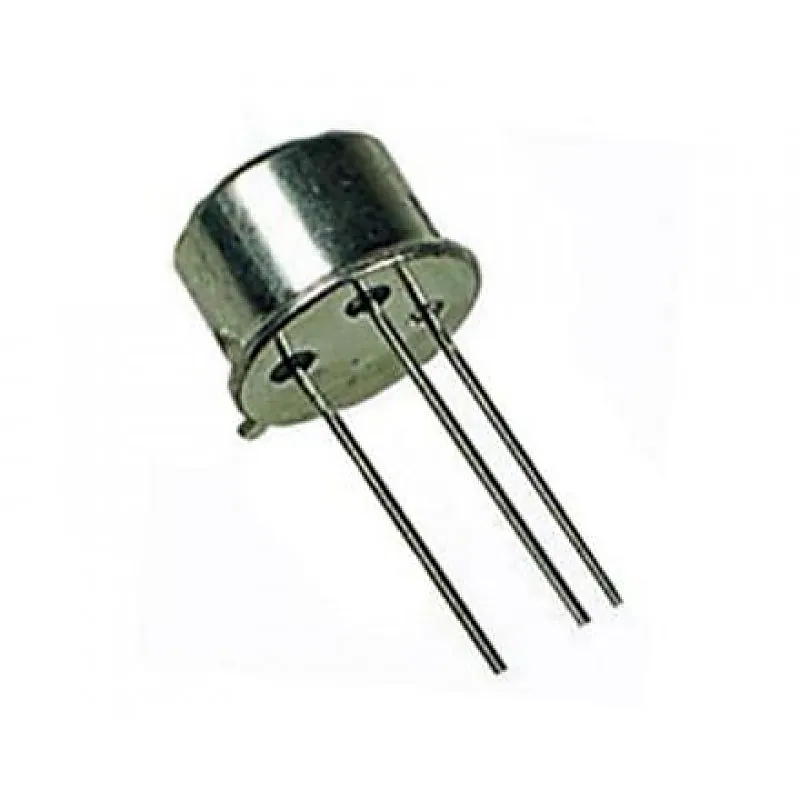

BC140 NPN Power Switching Transistor 40V 1A TO-39 Metal Package

BC140 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Metal TO-39 can package • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity NPN Collector-Base Voltage (VCBO) 80V Collector-Emitter Voltage (VCEO) 40V Emitter-Base Voltage (VEBO) 7V Continuous Collector Current (IC) 1A Output Capacitance (Cobo) 25pF Transition Frequency (fT) 50MHz DC Current Gain (hFE) 40-400 Operating Temperature Range -65 - 200°C Power Dissipation (PD) 4W Related Documents:- BC140 Transistor Datasheet
