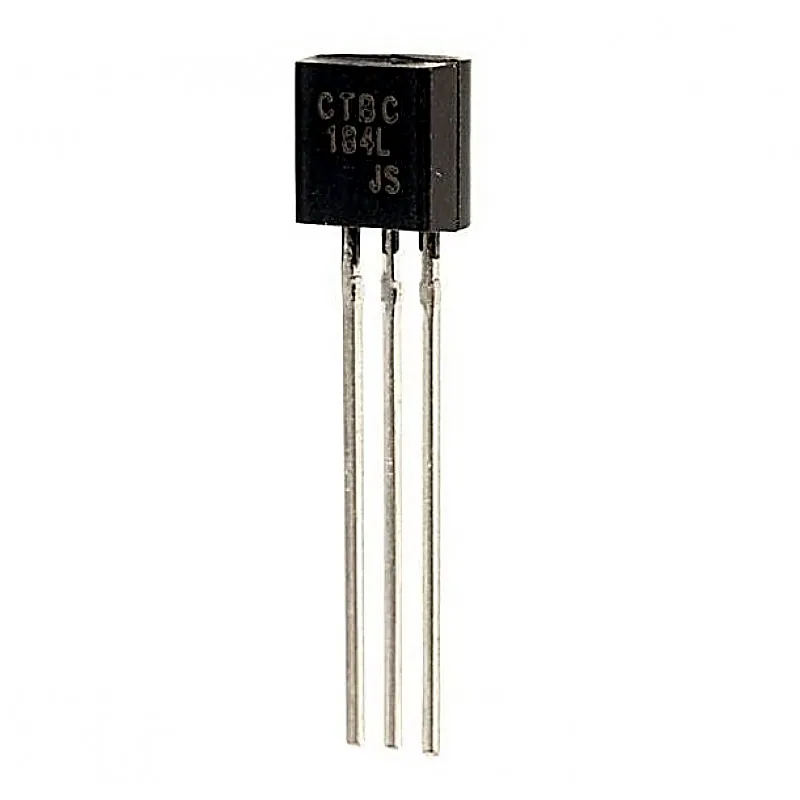

BC184L NPN General Purpose Amplifier Transistor 30V 100mA TO-92 Package

BC184L is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity NPN Collector-Base Voltage (VCBO) 45V Collector-Emitter Voltage (VCEO) 30V Emitter-Base Voltage (VEBO) 5V Continuous Collector Current (IC) 500mA Output Capacitance (Cobo) 5pF Transition Frequency (fT) 150MHz DC Current Gain (hFE) 100 Operating Temperature Range -55 - 150°C Collector Dissipation (PC) 350mW Related Documents:- BC184L Transistor Datasheet
