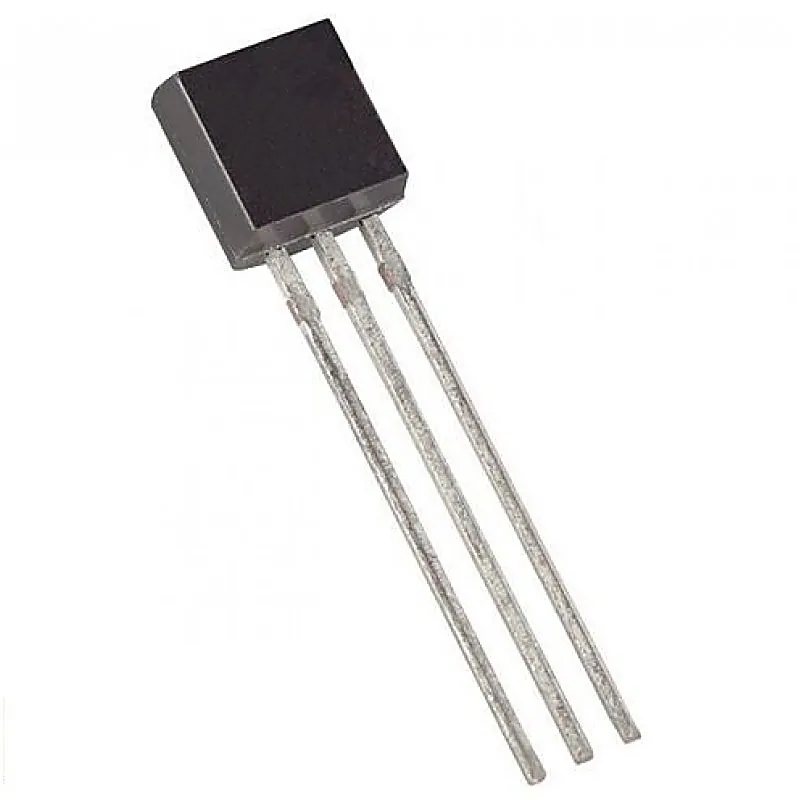

BC213L PNP General Purpose Amplifier Transistor 30V 500mA TO-92 Package

BC213 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity PNP Collector-Base Voltage (VCBO) 45VDC Collector-Emitter Voltage (VCEO) 30VDC Emitter-Base Voltage (VEBO) 5VDC Continuous Collector Current (IC) 100mA Output Capacitance (Cobo) 6pF Transition Frequency (fT) 360MHz DC Current Gain (hFE) 40 Operating Temperature Range -55 - 150°C Power Dissipation (PD) 1W Related Documents:- BC213L Transistor Datasheet
