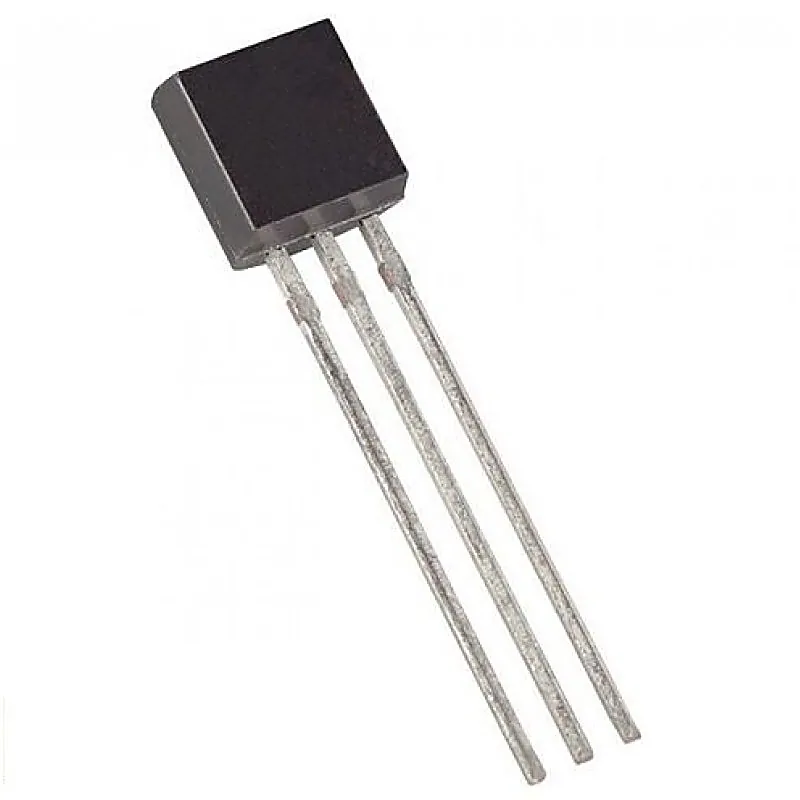

BC214 PNP General Purpose Amplifier Transistor 30V 500mA TO-92 Package

BC214 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity PNP Collector-Base Voltage (VCBO) 45V C ollector-Emitter Voltage (VCEO) 30V Emitter-Base Voltage (VEBO) 5V Continuous Collector Current (IC) 500mA Output Capacitance (Cobo) 10pF Transition Frequency (fT) 200MHz DC Current Gain (hFE) 140-400 Operating Temperature Range -55 - 150°C Power Dissipation (PD) 625mW Related Documents:- BC214 Transistor Datasheet
