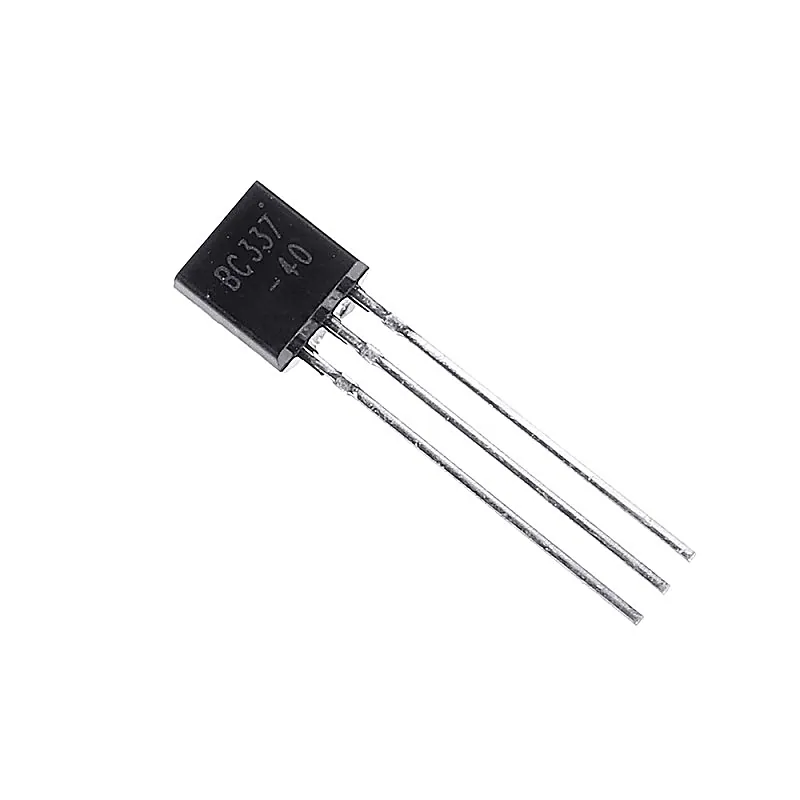

BC337 NPN General Purpose Amplifier Transistor 45V 800mA TO-92 Package - 5 Pieces Pack

BC337 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity NPN Collector-Base Voltage (VCBO) 50VDC Collector-Emitter Voltage (VCEO) 45VDC Emitter-Base Voltage (VEBO) 5VDC Continuous Collector Current (IC) 800mA Output Capacitance (Cobo) 15pF Transition Frequency (fT) 210MHz DC Current Gain (hFE) 100-630 Operating Temperature Range -55 - 150°C Power Dissipation (PD) 1.5W Related Documents:- BC337 Transistor Datasheet
