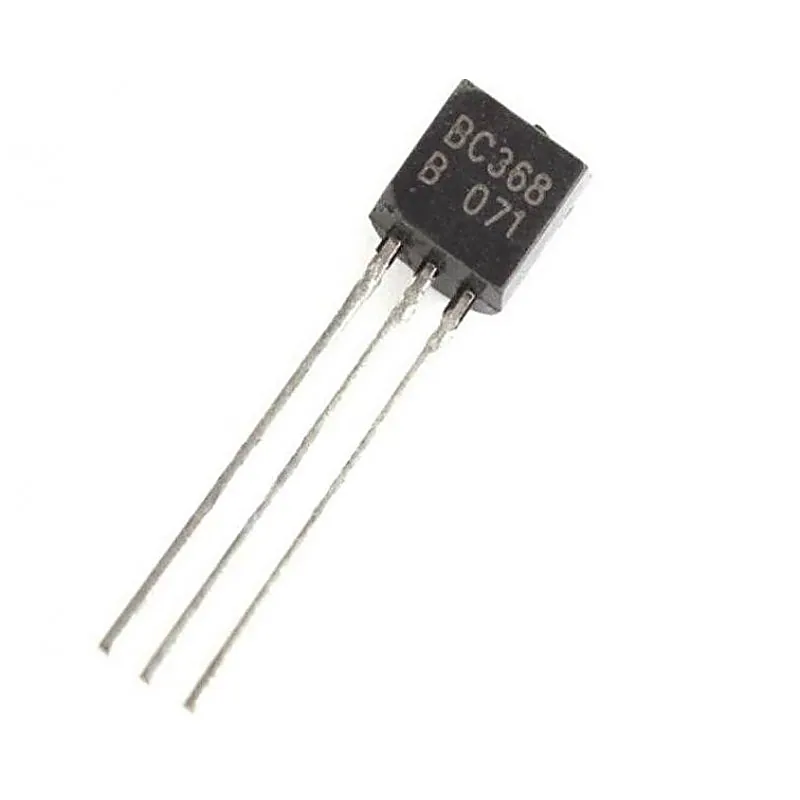

BC368 NPN Medium Power Transistor 20V 1A TO-92 Package

BC368 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity NPN Collector-Emitter Breakdown Voltage (BVCEO) 20VDC Collector-Emitter Voltage (VCEO) 20VDC Emitter-Base Voltage (VEBO) 5VDC Continuous Collector Current (IC) 1A Emitter−Base Breakdown Voltage (VBEBO) 5VDC Transition Frequency (fT) 65MHz DC Current Gain (hFE) 85-375 Operating Temperature Range -55 - 150°C Power Dissipation (PD) 1.5W Related Documents:- B C368 Transistor Datasheet
