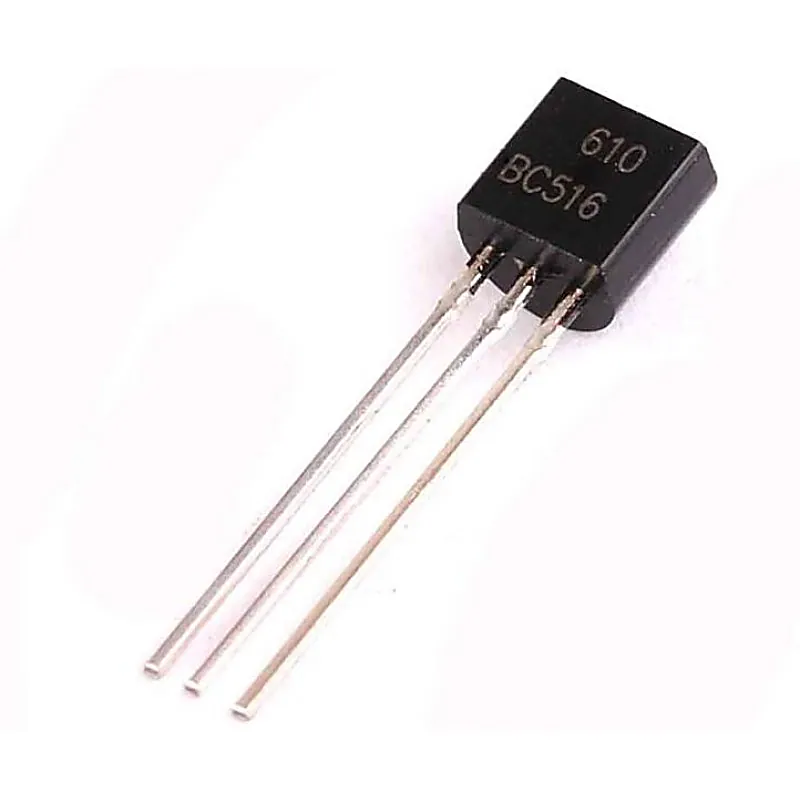

BC516 PNP Darlington Transistor 30V 1A TO-92 Package

BC516 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity PNP Collector-Base Voltage (VCBO) 40V Collector-Emitter Voltage (VCEO) 30V Emitter-Base Voltage (VEBO) 10V Continuous Collector Current (IC) 1A Collector-Emitter Breakdown Voltage (VCEO) 30V Base-Emitter On Voltage (VBE(on)) 1.4V Transition Frequency (fT) 200MHz Operating Temperature Range -55 - 150°C Power Dissipation (PD) 625mW Related Documents:- BC516 Transistor Datasheet
