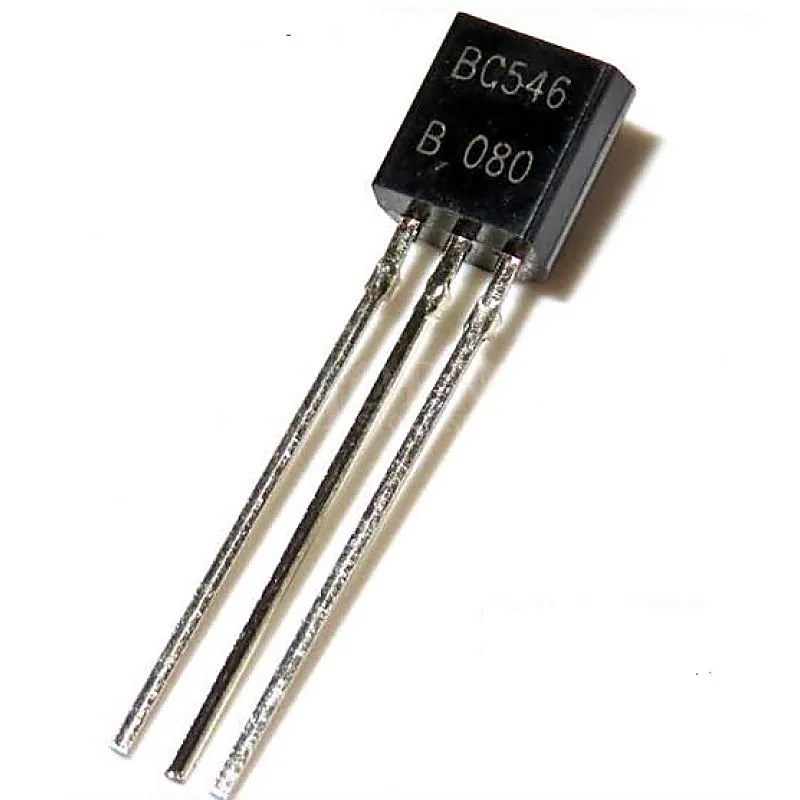

BC546 NPN General Purpose Transistor 65V 100mA TO-92 Package - 5 Pieces Pack

BC546 NPN Amplifier Transistor with 65V DC Emiiter Voltage and 100mA current made through P and N type Semiconductor. When a Semiconductor is placed in center between same type semiconductors the Arrangement is Called Transistor. Consist of three layers of a semiconductor device, Each capable of moving a current. Semiconductor is a made by Germanium and Silicon that conducts electricity also it is combination of two Diode. Used for Mobile phones, Industrial Control, Television and Flip-flops, High Frequency Application such as Radio Frequency Audio Circuit. Features:- NPN Amplifier Transistor is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. The NPN Amplifier Transistor is the fundamental building block of modern electronic devices, and is ubiquitous in modern electronic systems. NPN Amplifier Transistor very small size and weight, reducing equipment size. Operates at low operating voltages compatible with batteries of only a few cells. NPN Amplifier Transistor are circuits with greater energy efficiency are usually possible. Used for low-power applications. Detailed Specifications:- Transistor Polarity NPN Collector-Base Voltage (VCBO) 80VDC Collector-Emitter Voltage (VCEO) 65VDC Emitter-Base Voltage (VEBO) 6VDC Continuous Collector Current (IC) 100mA Output Capacitance (Cobo) 4.5pF Transition Frequency (fT) 300MHz DC Current Gain (hFE) 110-450 Operating Temperature Range -55 - 150°C Power Dissipation (PD) 625mW Related Documents:- BC546 Transistor Datasheet
