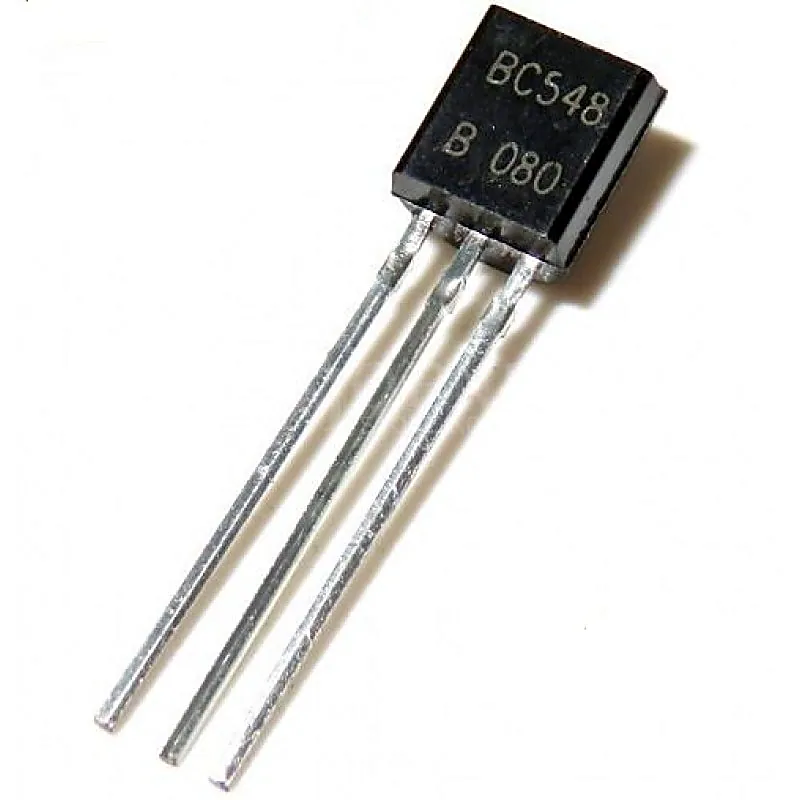

BC548 NPN General Purpose Transistor 30V 100mA TO-92 Package - 5 Pieces Pack

BC548 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity NPN Collector-Base Voltage (VCBO) 30VDC Collector-Emitter Voltage (VCEO) 30VDC Emitter-Base Voltage (VEBO) 6VDC Continuous Collector Current (IC) 100mA Output Capacitance (Cobo) 4.5pF Transition Frequency (fT) 300MHz DC Current Gain (hFE) 110-800 Operating Temperature Range -55 - 150°C Power Dissipation (PD) 625mW Related Documents:- BC548 Transistor Datasheet
