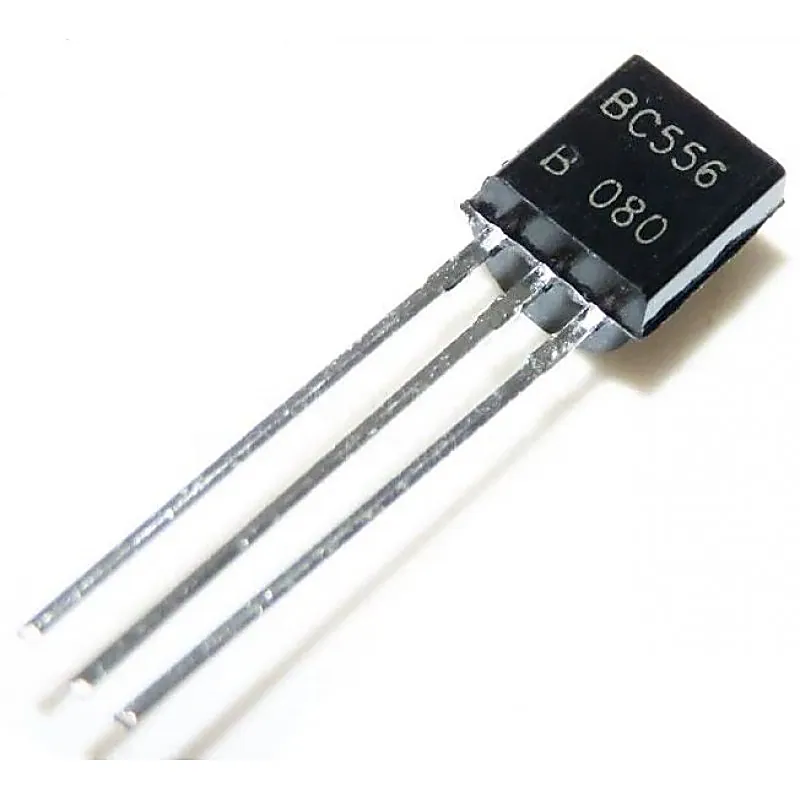

BC556 PNP General Purpose Transistor 65V 100mA TO-92 Package - 5 Pieces Pack

BC556 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity PNP Collector-Base Voltage (VCBO) 80V Collector-Emitter Voltage (VCEO) 65V Emitter-Base Voltage (VEBO) 5V Continuous Collector Current (IC) 100mA Output Capacitance (Cobo) 6pF Transition Frequency (fT) 150MHz DC Current Gain (hFE) 110-800 Operating Temperature Range -65 - 150°C Power Dissipation (PD) 500mW Related Documents:- BC556 Transistor Datasheet
