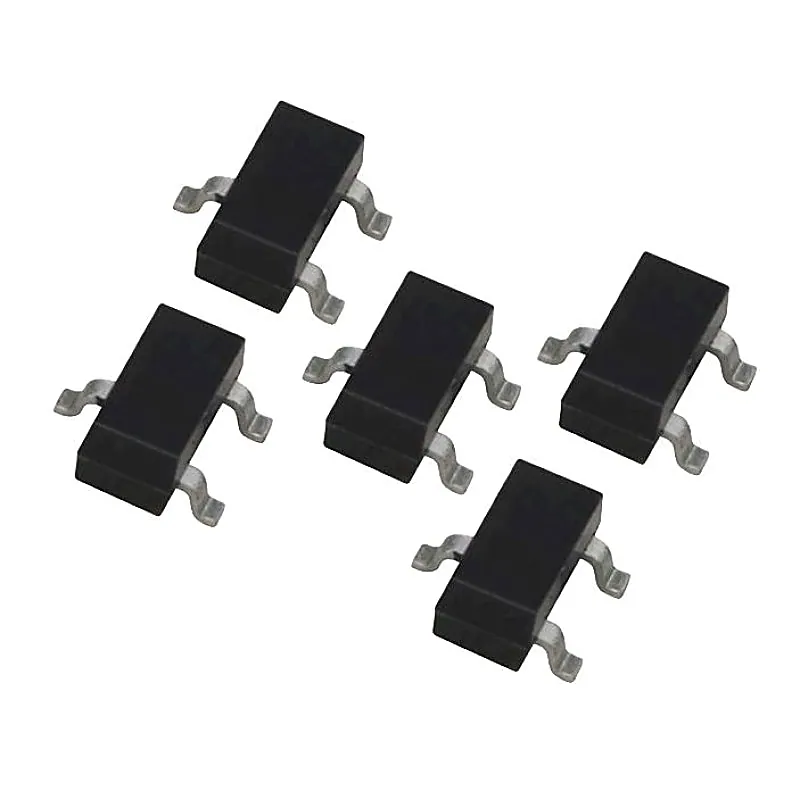

BC807 - (SMD SOT-23 Package) - PNP General Purpose Transistor - 5 Pieces Pack
BC807 - (SMD SOT-23 Package) - PNP General Purpose Transistor - 5 Pieces Pack
BC807 PNP general-purpose transistor comes in Surface-Mounted Device (SMD) plastic packages. It is mainly used in General-purpose switching and amplification. Specifications:- Mounting Style: SMD/SMT Package/Case: SOT-23-3 Transistor Polarity: PNP Configuration: Single Collector- Emitter Voltage VCE
+ 18% GST (added at checkout)
In stock — 1222 units ready
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-3
- Transistor Polarity: PNP
- Configuration: Single
- Collector- Emitter Voltage VCEO Max: 45 V
- Collector- Base Voltage VCBO: 50 V
- Emitter- Base Voltage VEBO: 5 V
- Maximum DC Collector Current: 0.5 A
- Gain Bandwidth Product fT: 80 MHz
- Maximum Operating Temperature: + 150 C
- DC Current Gain hFE Max: 250 at 100 mA at 1 V
- Minimum Operating Temperature: - 65 C
- Pd - Power Dissipation: 250 mW
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
BC807 PNP general-purpose transistor comes in Surface-Mounted Device (SMD) plastic packages. It is mainly used in General-purpose switching and amplification. Specifications:- Mounting Style: SMD/SMT Package/Case: SOT-23-3 Transistor Polarity: PNP Configuration: Single Collector- Emitter Voltage VCEO Max: 45 V Collector- Base Voltage VCBO: 50 V Emitter- Base Voltage VEBO: 5 V Maximum DC Collector Current: 0.5 A Gain Bandwidth Product fT: 80 MHz Maximum Operating Temperature: + 150 C DC Current Gain hFE Max: 250 at 100 mA at 1 V Minimum Operating Temperature: - 65 C Pd - Power Dissipation: 250 mW
