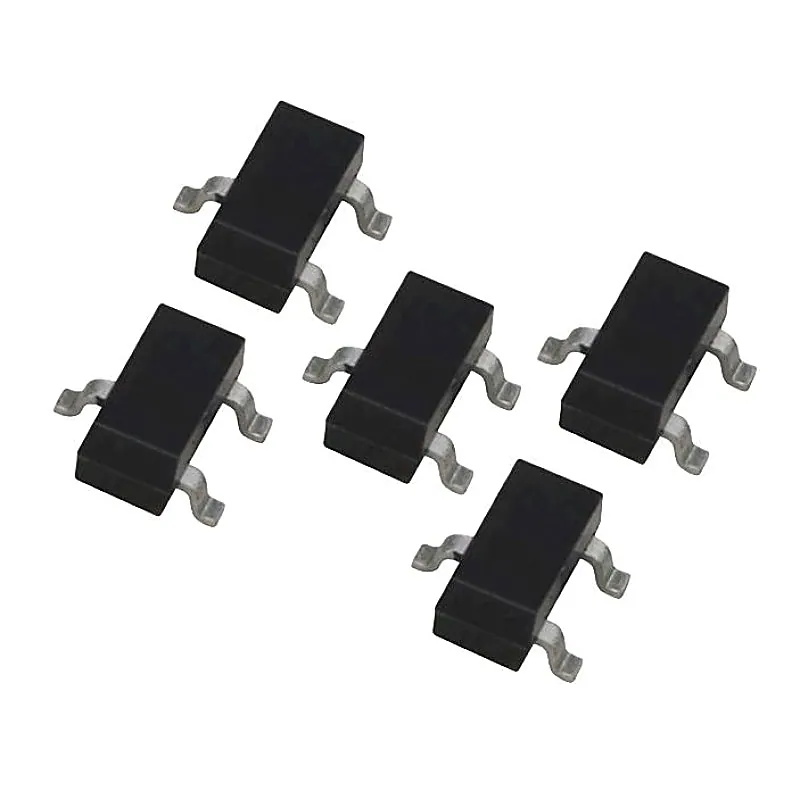

BC817 - (SMD SOT-23 Package) - NPN General Purpose Transistor - 5 Pieces Pack
BC817 - (SMD SOT-23 Package) - NPN General Purpose Transistor - 5 Pieces Pack
BC817 NPN general-purpose transistors comes in Surface-Mounted Device (SMD) plastic packages. It is mainly used in General-purpose switching and amplification. Specifications:- Mounting Style: SMD/SMT Package/Case: SOT-23-3 Transistor Polarity: NPN Configuration: Single Collector- Emitter Voltage VC
+ 18% GST (added at checkout)
In stock — 359 units ready
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-3
- Transistor Polarity: NPN
- Configuration: Single
- Collector- Emitter Voltage VCEO Max: 45 V
- Collector- Base Voltage VCBO: 50 V
- Emitter- Base Voltage VEBO: 5 V
- Maximum DC Collector Current: 0.5 A
- Gain Bandwidth Product fT: 100 MHz
- Maximum Operating Temperature: + 150 C
- DC Current Gain hFE Max: 250 at 100 mA at 1 V
- DC Collector/Base Gain hFE Min: 250 at 100 mA at 1 V, 40 at 500 mA at 1 V
- Minimum Operating Temperature: - 65 C
- Pd - Power Dissipation: 250 mW
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
BC817 NPN general-purpose transistors comes in Surface-Mounted Device (SMD) plastic packages. It is mainly used in General-purpose switching and amplification. Specifications:- Mounting Style: SMD/SMT Package/Case: SOT-23-3 Transistor Polarity: NPN Configuration: Single Collector- Emitter Voltage VCEO Max: 45 V Collector- Base Voltage VCBO: 50 V Emitter- Base Voltage VEBO: 5 V Maximum DC Collector Current: 0.5 A Gain Bandwidth Product fT: 100 MHz Maximum Operating Temperature: + 150 C DC Current Gain hFE Max: 250 at 100 mA at 1 V DC Collector/Base Gain hFE Min: 250 at 100 mA at 1 V, 40 at 500 mA at 1 V Minimum Operating Temperature: - 65 C Pd - Power Dissipation: 250 mW
