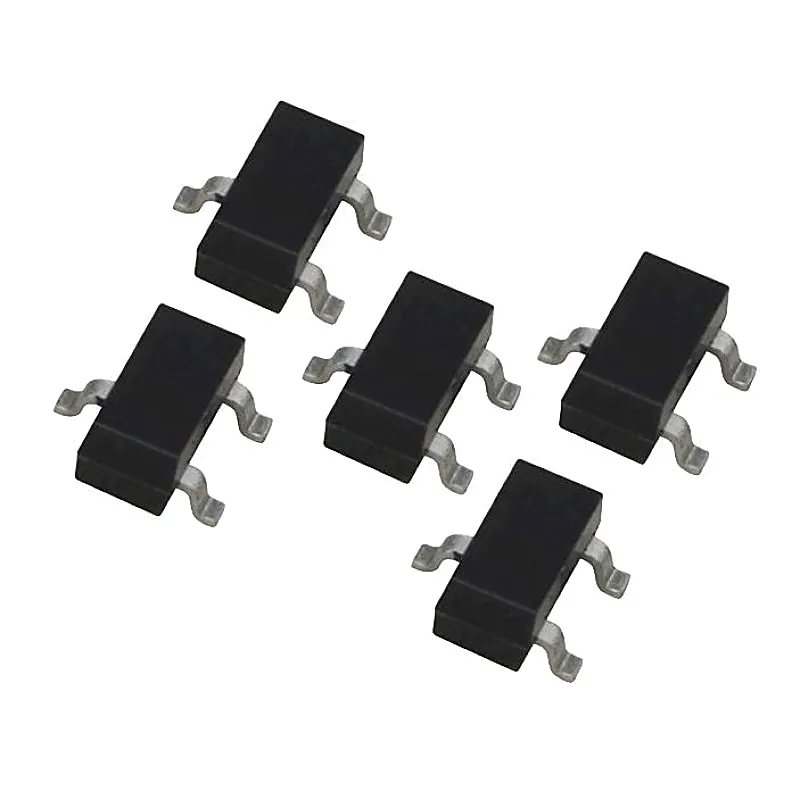

BC857 - (SMD SOT-23 Package) - PNP General Purpose Transistor - 5 Pieces Pack
BC857 - (SMD SOT-23 Package) - PNP General Purpose Transistor - 5 Pieces Pack
BC857 transistor belong to PNP general purpose transistors. General purpose switching and amplification are the main applications of this transistor. Specifications:- Mounting Style: SMD/SMT Package/Case: SOT-23-3 Transistor Polarity: PNP Configuration: Single Collector- Emitter Voltage VCEO Max: 45
+ 18% GST (added at checkout)
In stock — 954 units ready
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-3
- Transistor Polarity: PNP
- Configuration: Single
- Collector- Emitter Voltage VCEO Max: 45 V
- Collector- Base Voltage VCBO: 50 V
- Emitter- Base Voltage VEBO: 5 V
- Maximum DC Collector Current: 0.2 A
- Gain Bandwidth Product fT: 100 MHz
- Maximum Operating Temperature: + 150 C
- DC Current Gain hFE Max: 125 at 2 mA at 5 V
- DC Collector/Base Gain hFE Min: 125
- Minimum Operating Temperature: - 65 C
- Pd - Power Dissipation: 250 mW
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
BC857 transistor belong to PNP general purpose transistors. General purpose switching and amplification are the main applications of this transistor. Specifications:- Mounting Style: SMD/SMT Package/Case: SOT-23-3 Transistor Polarity: PNP Configuration: Single Collector- Emitter Voltage VCEO Max: 45 V Collector- Base Voltage VCBO: 50 V Emitter- Base Voltage VEBO: 5 V Maximum DC Collector Current: 0.2 A Gain Bandwidth Product fT: 100 MHz Maximum Operating Temperature: + 150 C DC Current Gain hFE Max: 125 at 2 mA at 5 V DC Collector/Base Gain hFE Min: 125 Minimum Operating Temperature: - 65 C Pd - Power Dissipation: 250 mW
