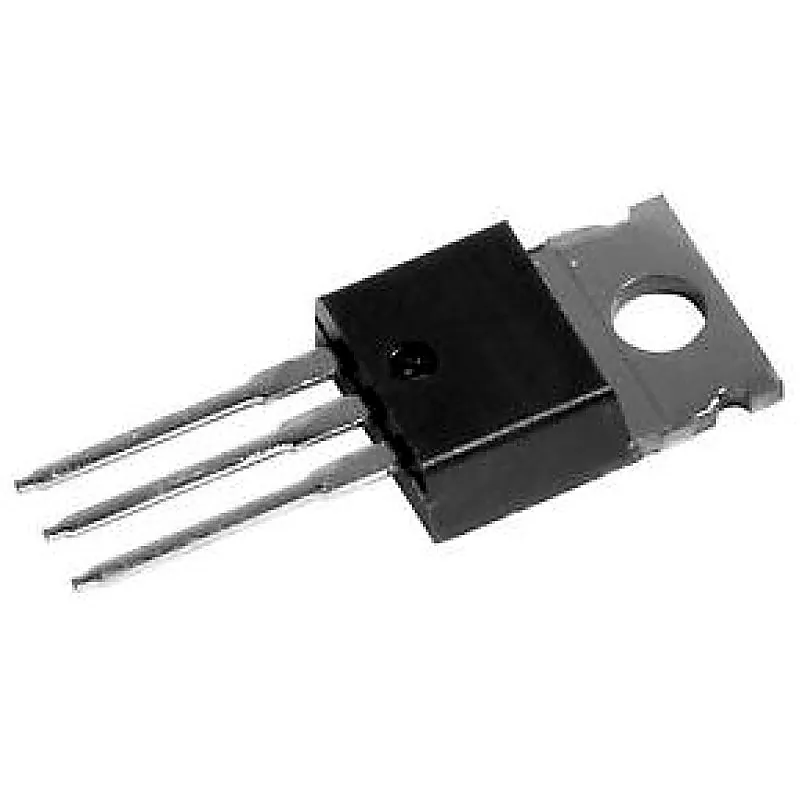

BD242C PNP Power Transistor 100V 3A TO-220 Package
BD242C PNP Power Transistor 100V 3A TO-220 Package
BD242C is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • S
+ 18% GST (added at checkout)
In stock — 355 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
BD242C is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • Simple drive requirements • High safe operating area • For low distortion complementary designs • Easy to carry and handle Detailed Specifications:- Transistor Polarity PNP Collector−Emitter Voltage (VCEO) 55V Emitter−Base Voltage (VEBO) 5V Continuous Collector Current (Ic) 3A Continuous Base Current (Ib) 1A Turn on Time (ton) 0.2 µs Operating Temperature Range -65 - 150°C Power Dissipation (Pd) 40W Turn off Time (toff) 0.4 µs Related Documents:- BD242C Transistor Datasheet
