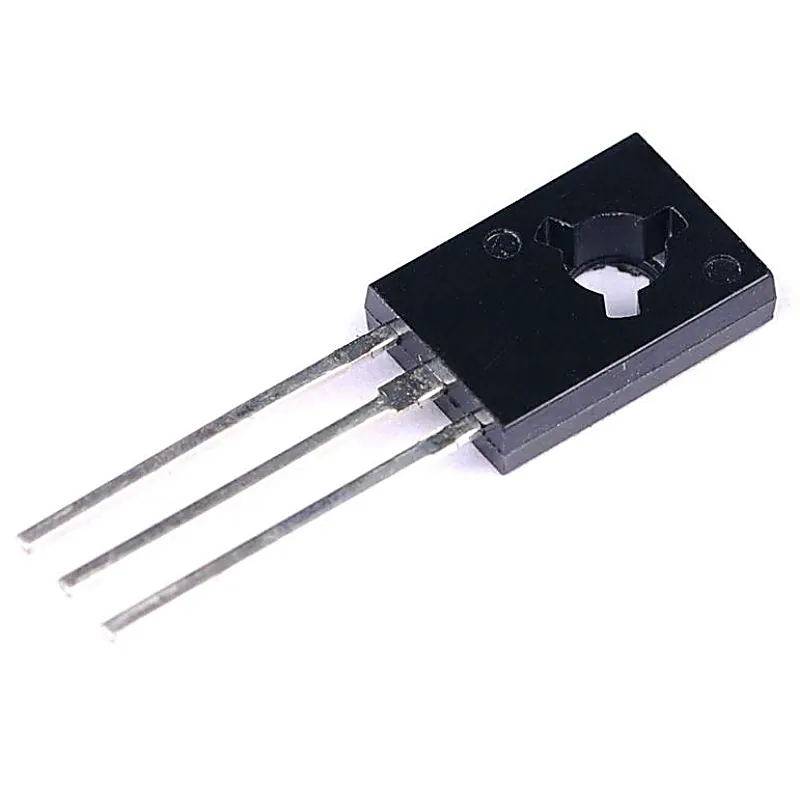

BD675 NPN Power Darlington Transistor 45V 4A TO-126 Package
BD675 NPN Power Darlington Transistor 45V 4A TO-126 Package
BD675 is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • Si
+ 18% GST (added at checkout)
In stock — 585 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
BD675 is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • Simple drive requirements • High safe operating area • For low distortion complementary designs • Easy to carry and handle Detailed Specifications:- Transistor Polarity NPN Collector−Emitter Voltage (VCEO) 45VDC Collector−Base Voltage (VCBO) 45VDC Emitter Base Voltage (VEBO) 5VDC Continuous Collector Current (Ic) 4ADC Continuous Base Current (Ib) 1ADC Operating Temperature Range -55 - 150°C Power Dissipation (Pd) 40W DC Current Gain (hFE) 750 Related Documents:- BD675 Transistor Datasheet
