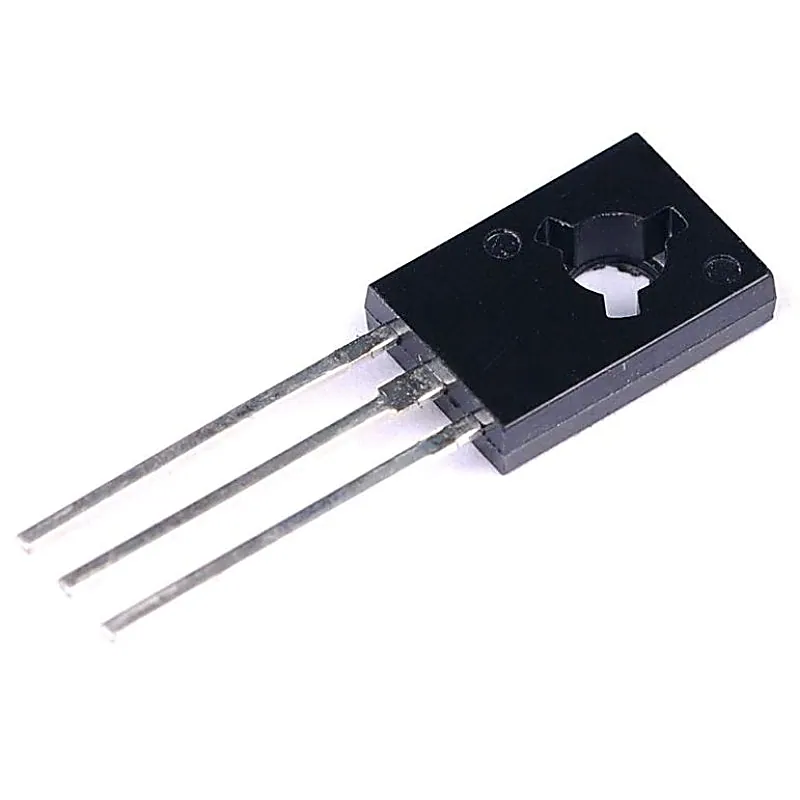

BD678 PNP Power Darlington Transistor 60V 4A TO-126 Package
BD678 PNP Power Darlington Transistor 60V 4A TO-126 Package
BD678 is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • Si
+ 18% GST (added at checkout)
In stock — 223 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
BD678 is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • Simple drive requirements • High safe operating area • For low distortion complementary designs • Easy to carry and handle Detailed Specifications:- Transistor Polarity PNP Collector−Emitter Voltage (VCEO) 60V Collector−Base Voltage (VCBO) 60V Emitter Base Voltage (VEBO) 5V Continuous Collector Current (Ic) 4A Continuous Base Current (Ib) 0.1A Operating Temperature Range -65 - 150°C Power Dissipation (Pd) 40W DC Current Gain (hFE) 750 Related Documents:- BD678 Transistor Datasheet
