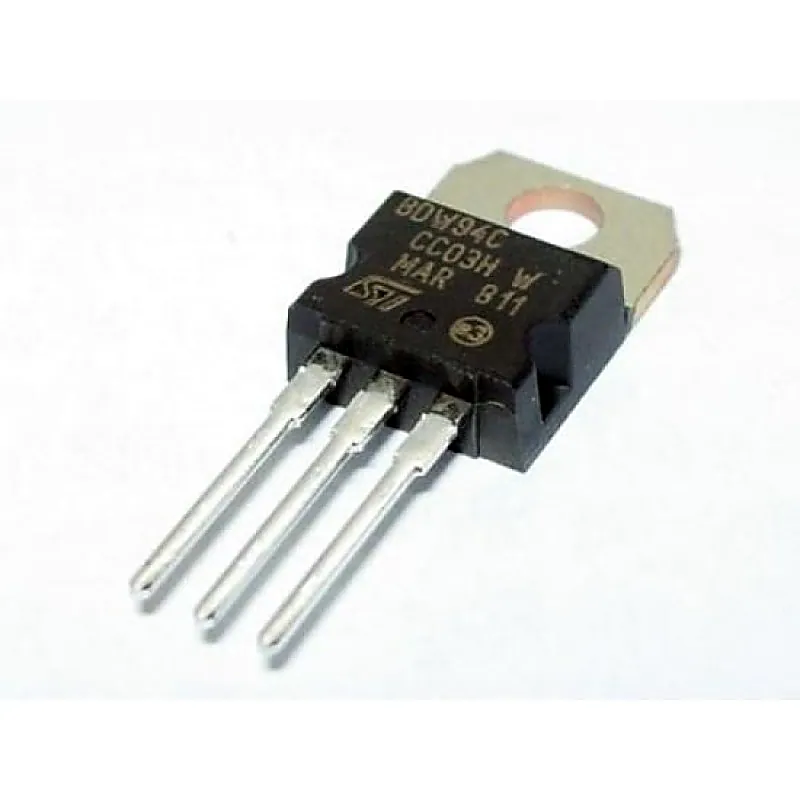

BDW94C PNP Power Darlington Transistor 100V 12A TO-220 Package
BDW94C PNP Power Darlington Transistor 100V 12A TO-220 Package
BDW94C is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • S
+ 18% GST (added at checkout)
In stock — 419 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
BDW94C is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • Simple drive requirements • High safe operating area • For low distortion complementary designs • Easy to carry and handle Detailed Specifications:- Transistor Polarity PNP Collector−Emitter Voltage (VCEO) 100V Collector−Base Voltage (VCBO) 100V Continuous Collector Current (Ic) 12A Continuous Base Current (Ib) 0.2A Operating Temperature Range -65 - 150°C Power Dissipation (Pd) 80W DC Current Gain (hFE) 1000-20K Thermal Resistance Junction-case 1.56°C/W Related Documents:- BDW94C Transistor Datasheet
