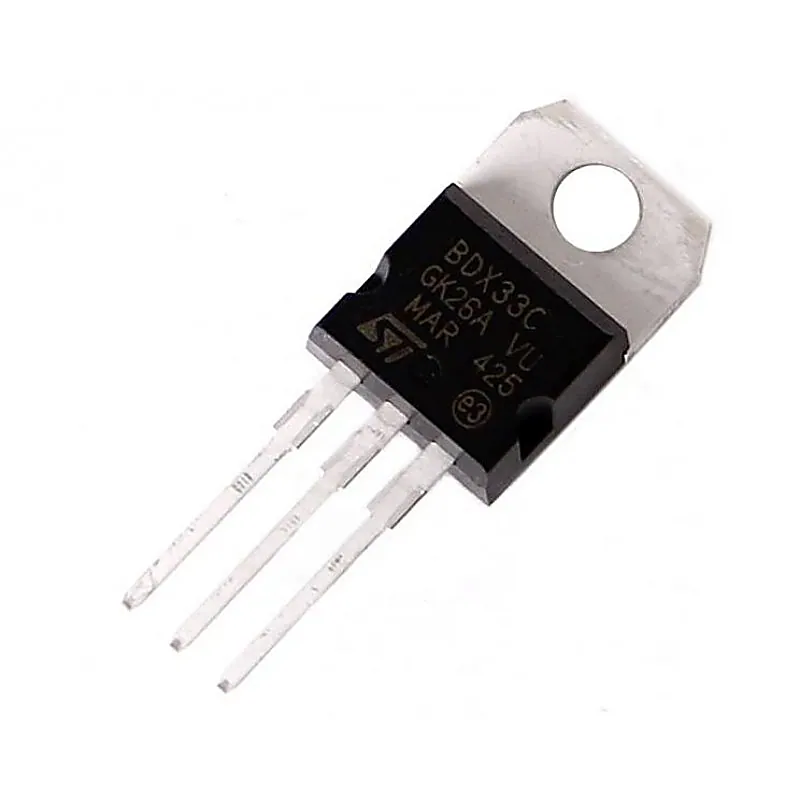

BDX33C NPN Power Darlington Transistor 100V 10A TO-220 Package
BDX33C NPN Power Darlington Transistor 100V 10A TO-220 Package
BDX33C is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • S
+ 18% GST (added at checkout)
In stock — 444 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
BDX33C is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • Simple drive requirements • High safe operating area • For low distortion complementary designs • Easy to carry and handle Detailed Specifications:- Transistor Polarity NPN Collector−Emitter Voltage (VCEO) 100V Collector−Base Voltage (VCBO) 100V Continuous Collector Current (Ic) 10A Continuous Base Current (Ib) 0.2A Operating Temperature Range -65 - 150°C Power Dissipation (Pd) 70W DC Current Gain (hFE) 750 Thermal Resistance Junction-case 1.78°C/W Related Documents:- BDX33C Transistor Datasheet
